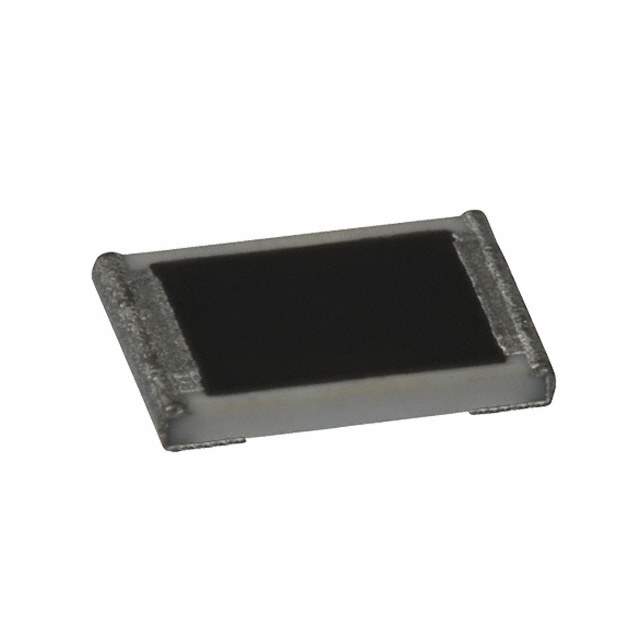

ERA3AED753V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Case / Package 0603
Case Code (Imperial) 0603
Case Code (Metric) 1608
Composition Thin Film
Contact Plating Tin
Depth 800 µm
Height 450 µm
Lead Free Lead Free
Length 1.6 mm
Max Operating Temperature 155 °C
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Power Rating 100 mW
Resistance 75 kΩ
RoHS Compliant
Temperature Coefficient 25 ppm/°C
Termination SMD/SMT
Tolerance 0.5 %
Voltage Rating 75 V
Weight 2.012816 mg
Width 800 µm
Win Source Part Number 1129939-ERA3AED753V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ERA3AED753V CAD Model

Description

The Panasonic electronic component with Win Source Part Number 1129939-ERA3AED753V is a chip resistor with a surface mount termination.

  • Voltage Rating: 75 V
  • Resistance: 75 kΩ
  • Tolerance: 0.5%
  • Temperature Coefficient: 25 ppm/°C
  • Power Rating: 100 mW
  • Dimensions: 1.6 mm x 0.8 mm x 0.45 mm
  • Category: Chip Resistor - Surface Mount
  • Popularity: Medium
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Operating Temperature Range: -55 °C to 155 °C
