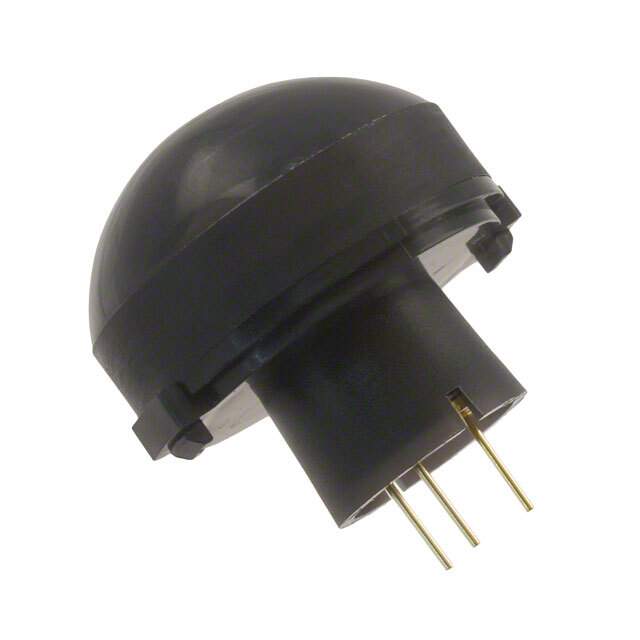

EKMB1206112 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Optical
Mfr Panasonic Electric Works
Series EKMB
Package Tray
Sensor Type PIR (Passive Infrared)
Sensing Distance 472" (12m) 39.4'
Output Type Digital
Voltage - Supply 2.3V ~ 4V
Trigger Type Internal
Features High Density Lens, Black
Package / Case Module
Temperature Range - Operating -20°C ~ 60°C
Detection Pattern Long
Base Product Number EKMB120611
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names 255-6253
Standard Package 50
Win Source Part Number 1227308-EKMB1206112
Ultra Librarian 3D Model Ultra Librarian EKMB1206112 CAD Model

Description

The EKMB series motion sensor from Panasonic Electric Works is a high-density lens, black sensor with a sensing distance of 472" (12m) 39.4'.

  • Sensor Type: PIR (Passive Infrared)
  • Detection Pattern: Long
  • Output Type: Digital
  • Trigger Type: Internal
  • Voltage Supply: 2.3V ~ 4V
  • Temperature Range: -20°C ~ 60°C
  • Package: Module
  • Standard Package: 50
