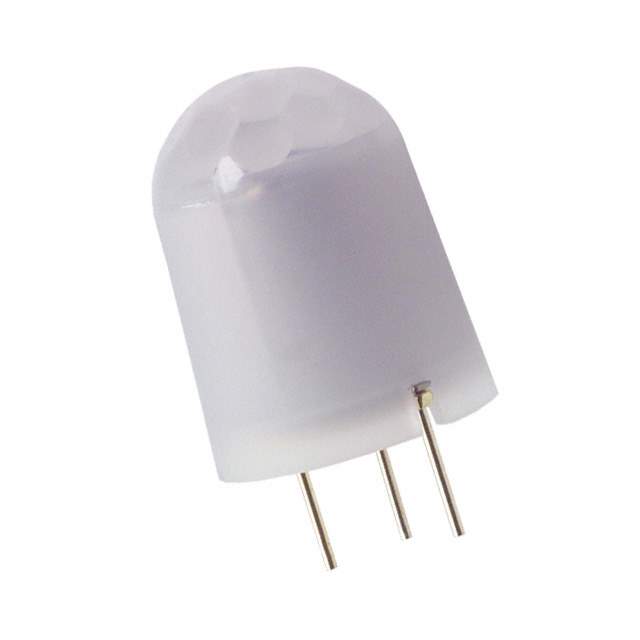

AMN41122 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Optical
Mfr Panasonic Electric Works
Series AMN
Package Box
Sensor Type PIR (Passive Infrared)
Sensing Distance 197" (5m) 16.4'
Output Type Digital
Voltage - Supply 2.2V ~ 3V
Trigger Type Internal
Features Standard Lens, White
Package / Case Cylinder
Temperature Range - Operating -20°C ~ 60°C (TA)
Detection Pattern Standard
Base Product Number AMN411
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names AMN41122-ND,255-2651
Standard Package 50
Win Source Part Number 1159173-AMN41122
Ultra Librarian 3D Model Ultra Librarian AMN41122 CAD Model

Description

The Panasonic AMN41122 is a motion sensor with a PIR (passive infrared) sensor type. It has a digital output type and a sensing distance of 197 inches (5m) 16.4'. This component is manufactured by Panasonic Electric Works and has a Win Source Part Number of 1159173-AMN41122.
