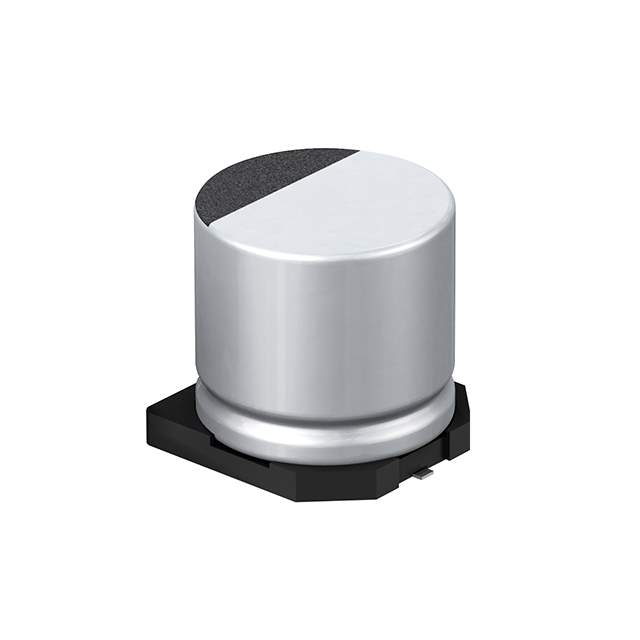

Same model may have multiple batches, images only for reference.

EEH-ZE1E331P

Name: EEH-ZE1E331P
Brand: Panasonic
SKU: 1331535
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEH-ZE1E331P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 330UF 20% 25V SMD / 330 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 2000 Hrs @ 145°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Type	Hybrid
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	20mOhm
Lifetime @ Temp.	2000 Hrs @ 145°C
Temperature Range - Operating	-55°C ~ 145°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	135 mA @ 100 Hz
Ripple Current @ High Frequency	900 mA @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEH-ZE
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P122142TR,P122142DKR,EEHZE1E331P,P122142CT
Standard Package	500
Win Source Part Number	1331535-EEH-ZE1E331P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZE1E331P CAD Model

Description

The Panasonic Electronic Components 1331535-EEH-ZE1E331P is a hybrid aluminum-polymer capacitor with a capacitance of 330 µF and a voltage rating of 25 V.

Capacitance: 330 µF
Voltage Rating: 25 V
Tolerance: ±20%
ESR: 20mOhm
AEC-Q200 Rated: Yes
Case Style: Radial, can - SMD
Lifetime: 2000 hours @ 145°C
Ripple Current: 135 mA @ 100 Hz and 900 mA @ 100 kHz
REACH: Unaffected
ROHS3 Compliant: Yes
Packaging: Reel
Standard Package: 500
