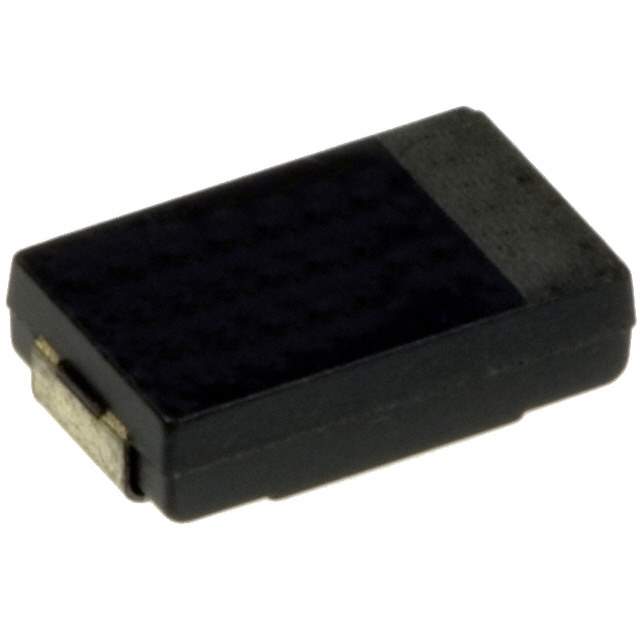

The EEFCX1E330R is an aluminum electrolytic capacitor manufactured by Panasonic. Electrolytic capacitors are polarized capacitors commonly used in electronic circuits for filtering, smoothing, and energy storage applications.

Applications:

• Power supply filtering to reduce ripple voltage.
• DC link capacitors in inverter circuits.
• Energy storage in electronic devices.
• Coupling and decoupling in audio circuits.
• Timing circuits.

Features:

• Capacitance value of 33µF (microfarads).
• Voltage rating of 25VDC.
• Relatively high ripple current capability.
• Operating temperature range (consult datasheet for exact range).
• Long life (consult datasheet for specific lifetime rating).

Benefits:

• Effective filtering of AC ripple in power supplies.
• Stable performance over a wide temperature range.
• Long operating life, ensuring reliable performance.
• Compact size for space-constrained applications.

Additional Details:

The EEFCX1E330R electrolytic capacitor uses an aluminum foil electrode with an oxide layer as the dielectric. The electrolyte is a liquid or gel that provides ionic conductivity between the electrodes. Electrolytic capacitors have a relatively high capacitance value for their size, but they also have a higher equivalent series resistance (ESR) and a shorter lifespan compared to ceramic capacitors.

The ripple current rating indicates the maximum AC current that the capacitor can handle without overheating. The operating temperature range specifies the temperature limits within which the capacitor will perform reliably. The lifetime rating indicates the expected operating life of the capacitor under specified conditions. Aluminum electrolytic capacitors are commonly used in power supplies, audio equipment, and other electronic devices where high capacitance and voltage are required. Polarity must be observed when installing these capacitors.

Consult the Panasonic datasheet for detailed specifications, including ripple current, ESR, operating temperature range, and lifetime rating, to ensure proper application of this capacitor.
