Analog Devices Inc. AD595CD Thermocouple Amplifier

The AD595CD from Analog Devices Inc. is a monolithic thermocouple amplifier with an integrated cold junction compensator and amplifier, designed for high precision temperature measurement applications. This precision instrumentation device is specifically tailored for use with type K thermocouples, providing a direct Celsius temperature readout.

One of the standout features of the AD595CD is its ease of use. It requires no external components to achieve its full functionality, making it an ideal solution for designers who need a simple, yet accurate, temperature measurement system. The device operates with a single supply voltage ranging from +5V to +15V, and it can measure temperatures from -55°C to +125°C, with a sensitivity of 10mV/°C.

The integrated cold junction compensator of the AD595CD accounts for temperature variations at the thermocouple's reference junction, ensuring accurate temperature readings across the entire operating range. This compensation is essential for precise measurements, as it eliminates the need for additional calibration in many applications.

With its high impedance differential input, the AD595CD is designed to protect against common-mode noise and to be immune to ground loops, which can be particularly problematic in industrial environments. The device also features a built-in ice point compensation reference, which is calibrated to 0°C, further enhancing its accuracy.

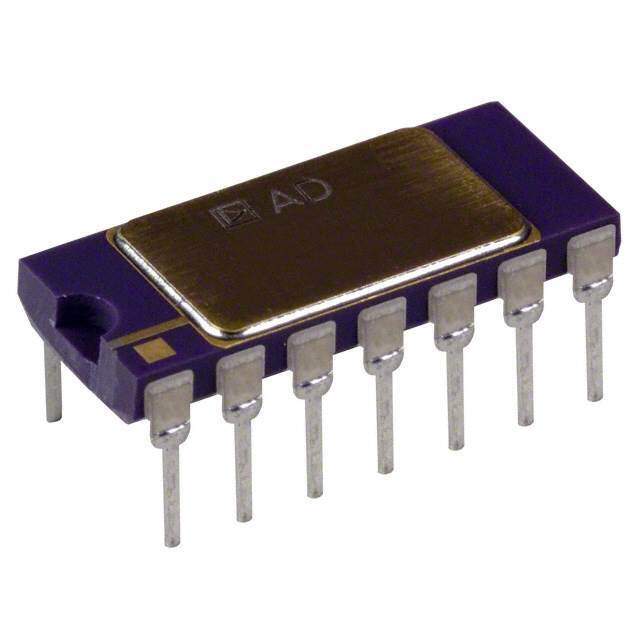

For those looking for a robust, reliable solution for temperature measurement, the AD595CD offers a compact 14-pin ceramic DIP (Dual In-line Package) that can withstand harsh conditions and is suited for demanding applications. Its high level of integration reduces the complexity of the surrounding circuitry, leading to a reduction in board space requirements and overall system cost.

Analog Devices Inc. has a reputation for producing high-quality precision components, and the AD595CD is no exception. It represents a convenient, accurate, and cost-effective solution for a wide range of temperature sensing applications in fields such as industrial control systems, HVAC, consumer electronics, and automotive diagnostics.

For detailed specifications and application guidance, designers and engineers are encouraged to consult the AD595CD datasheet available on the Analog Devices website.
