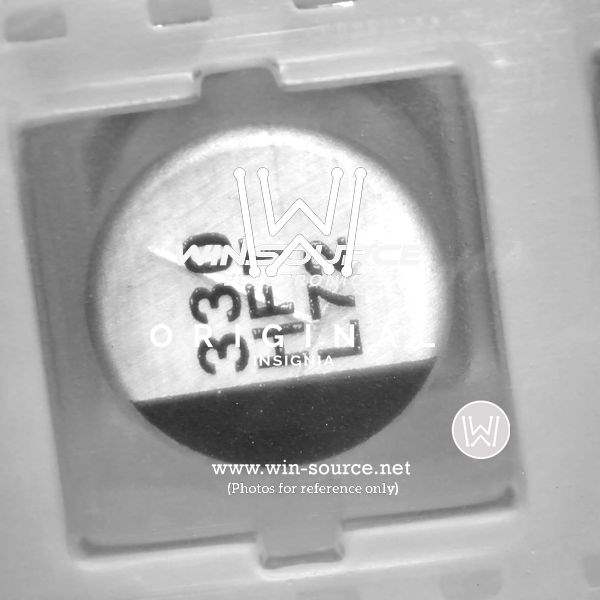

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 330 µF
Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 10 mm
Dielectric Material Aluminium
Dissipation Factor 10 %
ESR (Equivalent Series Resistance) 120 mΩ
Height 10.2 mm
Height - Seated (Max) 10.4902 mm
Lead Diameter 900 µm
Lead Free Yes
Lead Pitch 4.6 mm
Leakage Current 165 µA
Length 10.2 mm
Life (Hours) 2000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape
Polarity Polar
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 900 mA
Ripple Current (AC) 900 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 50 V
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Win Source Part Number 1001703-EEEFT1H331AP
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEEFT1H331AP CAD Model

Description

The Panasonic EEEFT1H331AP is an aluminum capacitor with a capacitance of 330 µF, a voltage rating of 50 V, and a tolerance of 20%.

  • Capacitance: 330 µF
  • Voltage Rating: 50 V
  • Tolerance: 20%
  • Leakage Current: 165 µA
  • ESR: 120 mΩ
  • Ripple Current: 900 mA
  • Polar: Yes
  • Diameter: 10 mm
  • Height: 10.2 mm
  • Pins: 2
  • Mounting Technology: SMT
  • Dissipation Factor: 10%
  • Dielectric Material: Aluminum
  • Contact Plating: Tin
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Maximum Temperature: 105°C
  • Minimum Temperature: -55°C
  • Supply: Short supply
  • Popularity: Low
  • Package: Cut tape
  • Alternatives: EEE-FK1V331P, EEEFT1V331AP, EMVY350ADA331MJA0G, EEVFK1H331Q, UVR1J331MPD, UUR1V331MNL1GSEEE-FT1H331AP, and EEE-FT1H331AP
