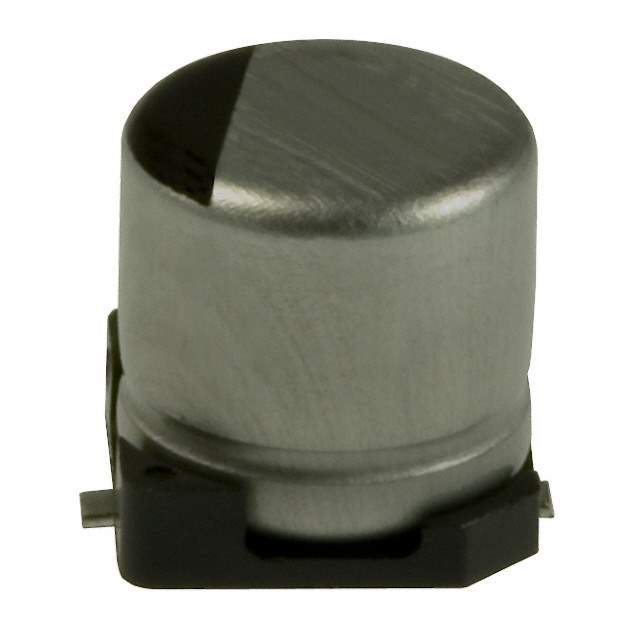

Same model may have multiple batches, images only for reference.

EEE-1HA100WAR

Name: EEE-1HA100WAR
Brand: Panasonic
SKU: 1331389
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-1HA100WAR
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 50V SMD / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	27 mA @ 120 Hz
Ripple Current @ High Frequency	45.9 mA @ 10 kHz
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-1HA
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	EEE1HA100WAR,PCE4608TR,PCE4608CT,PCE4608DKR
Standard Package	1,000
Win Source Part Number	1331389-EEE-1HA100WAR
Ultra Librarian 3D Model	Ultra Librarian EEE-1HA100WAR CAD Model

Description

This aluminum electrolytic capacitor is manufactured by Panasonic Electronic Components and is AEC-Q200 rated.

Manufacturer: Panasonic Electronic Components
AEC-Q200 Rated: Yes
Capacitance: 10 µF
Voltage Rating: 50 V
RoHS Compliant: Yes
Temperature Range: -40°C to 85°C
Mounting: Surface Mountable
Case/Package: Radial, Can - SMD
