Same model may have multiple batches, images only for reference.

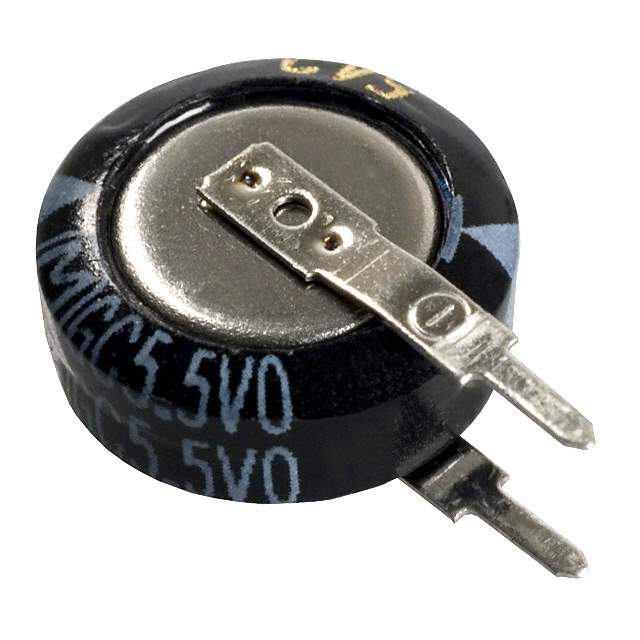

EEC-S0HD223V Real Image
Same model may have multiple batches, images only for reference.

EEC-S0HD223V

Part No EEC-S0HD223V
Manufacturer Panasonic
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 22MF -20% +80% 5.5V T/H
Datasheet
EEC-S0HD223V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Capacitance 22mF
Tolerance -20%, +80%
Voltage Rating 5.5V
ESR 150 Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Through Hole
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1035852-EEC-S0HD223V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EEC-S0HD223V CAD Model

Description

The Panasonic Electronic Components capacitor EEC-S0HD223V is a through-hole mounting type with a capacitance of 22mF and a voltage rating of 5.5V.

  • Capacitance: 22mF
  • Voltage Rating: 5.5V
  • Tolerance: -20%, +80%
  • Lead Spacing: 0.197"
  • Lifetime @ 70°C: 1000 hours
  • ESR: 150 Ohm @ 1kHz
  • Category: capacitor
  • Status: obsolete
  • Popularity: medium
  • Supply and Demand Status: balanced
