Same model may have multiple batches, images only for reference.

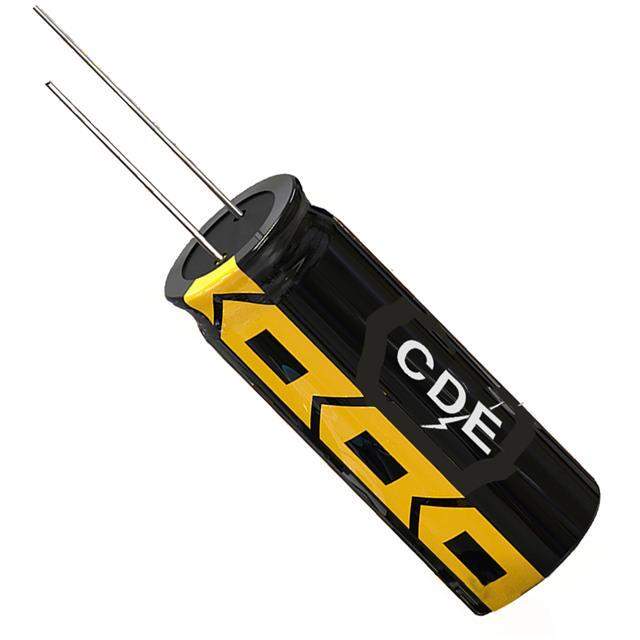

DSF106Q3R0 Real Image
Same model may have multiple batches, images only for reference.

DSF106Q3R0

Part No DSF106Q3R0
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description 10F 3.0V 10*30  /  10 F (EDLC) Supercapacitor 3 V Radial, Can 40mOhm @ 1kHz 1000 Hrs @ 65°C
Datasheet
DSF106Q3R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier / Illinois Capacitor
Series DSF
Package Bulk
Capacitance 10 F
Tolerance -10%, +30%
Voltage - Rated 3 V
ESR (Equivalent Series Resistance) 40mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 65°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Temperature Range - Operating -40°C ~ 65°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1572-DSF106Q3R0
Standard Package 200
Win Source Part Number 1092382-DSF106Q3R0
Ultra Librarian 3D Model Ultra Librarian DSF106Q3R0 CAD Model

Description

The Cornell Dubilier / Illinois Capacitor electronic component with Win Source Part Number 1092382-DSF106Q3R0 is a capacitor belonging to the Electric Double Layer Capacitors (EDLC), Supercapacitors category.

  • Category: Electric Double Layer Capacitors (EDLC), Supercapacitors
  • Capacitance: 10 F
  • Voltage Rating: 3 V
  • ESR: 40mOhm @ 1kHz
  • Lifetime @ Temperature: 1000 Hrs @ 65°C
  • Package/Case: Radial, Can
  • Mounting: Through Hole
  • Standard Package: 200
  • Height: 1.260" (32.00mm)
  • Tolerance: -10%, +30%
