Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.039μF
Tolerance ±5%
Voltage Rating - DC 400V
Temperature Range - Operating -55°C to 85°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.197" W (7.10mm x 5.00mm)
Height - Seated (Max) 0.142" (3.60mm)
Termination Solder Pads
Applications DC Link, DC Filtering
Win Source Part Number 121578-ECW-U4393V17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U4393V17 CAD Model

Description

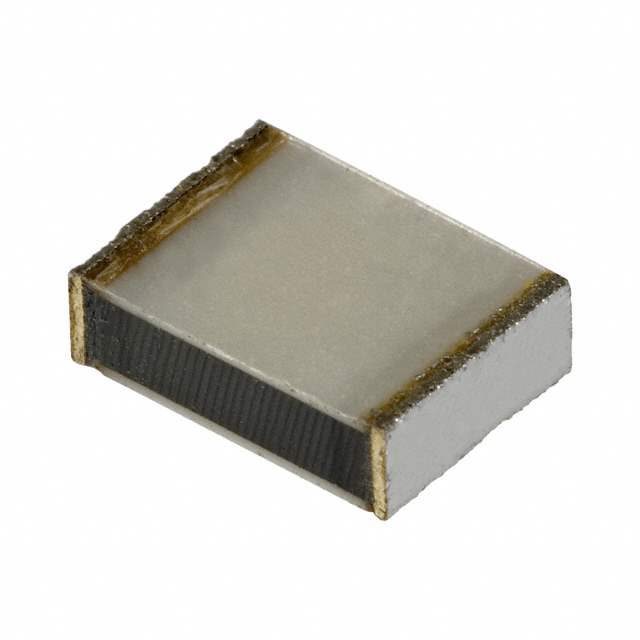

ECW-U4393V17 Metallized Polyester Film Capacitor

The ECW-U4393V17 capacitor is engineered for precision and reliability, offering exceptional performance in a variety of electronic applications. Its metallized polyester film construction ensures longevity and efficiency.

  • Excellent Self-Healing Properties: The metallized film allows it to handle spikes and surges efficiently, providing a stable performance in various conditions.
  • Low Loss Factor: Minimizes energy waste, making it ideal for high-efficiency applications.
  • Consistent Capacitance: Maintains stable capacitance over a wide frequency range, ensuring reliability in signal and power applications.

Applications:

  • Electronic filtering
  • Tuners
  • Voltage multipliers
  • Motor run applications
