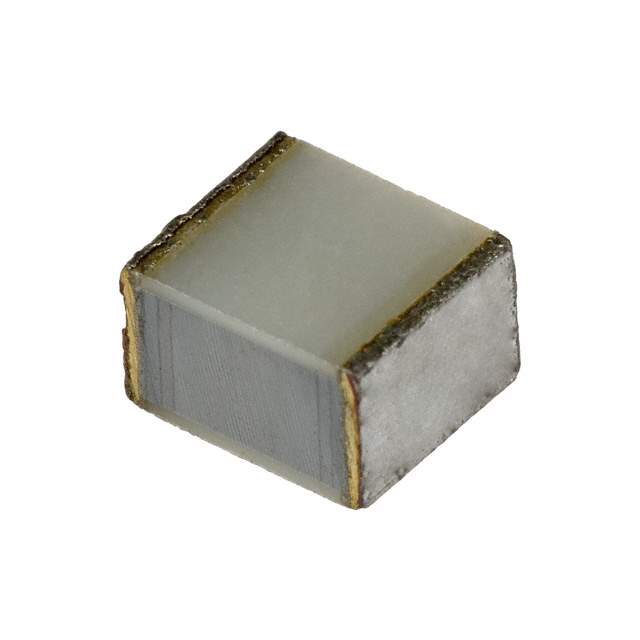

ECW-U2184KCV Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-U(C)
Package Tape & Reel
Capacitance 0.18 µF
Tolerance ±10%
Voltage Rating - AC 125V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2825 (7163 Metric)
Dimension 0.280" L x 0.248" W (7.10mm x 6.30mm)
Height - Seated (Max) 0.169" (4.30mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECW-U
RoHS Status RoHS non-compliant
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8532.25.0010
Other Names PCF1274DKR-NDR,ECWU2184KCV,PCF1274TR,PCF1274TR-NDR,PCF1274CT-NDR,PCF1274DKR,PCF1274CT
Standard Package 1,000
Win Source Part Number 1032440-ECW-U2184KCV
Ultra Librarian 3D Model Ultra Librarian ECW-U2184KCV CAD Model

Description

The ECW-U2184KCV capacitor is a film capacitor belonging to the Capacitors category. Bold the product name (e.g., BAV99S,135 → ECW-U2184KCV) and manufacturer (e.g., Nexperia USA Inc. → Panasonic Electronic Components).

  • Voltage Rating: 125V AC and 250V DC
  • Capacitance: 0.18 μF
  • Tolerance: ±10%
  • Mounting: Surface mountable
  • Package: Tape & reel
  • Standard Package: 1000
  • Operating Temperature: -55°C to 125°C
  • Height: 0.169 inches
