Same model may have multiple batches, images only for reference.

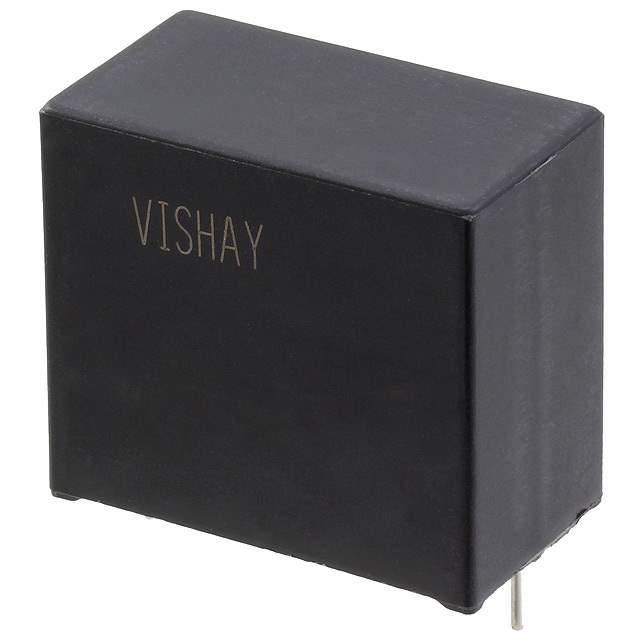

MKP1848C63580JP2 Real Image
Same model may have multiple batches, images only for reference.

MKP1848C63580JP2

Part No MKP1848C63580JP2
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 35UF 5% 800VDC RADIAL / 35 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
Datasheet
MKP1848C63580JP2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP1848C DC-Link
Package Bulk
Capacitance 35 µF
Tolerance ±5%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 4 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications DC Link, DC Filtering
Features Low ESR; Low ESL; Long Life
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Other Names 1848C63580JP2
Standard Package 63
Win Source Part Number 1228777-MKP1848C63580JP2
Ultra Librarian 3D Model Ultra Librarian MKP1848C63580JP2 CAD Model

Description

The Vishay MKP1848C DC-Link series capacitor is a high-quality electronic component with a capacitance of 35 µF and a tolerance of ±5%.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Capacitance: 35 µF
  • Tolerance: ±5%
  • Voltage Rating: 800V DC
  • ESR: 4 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Package/Case: Radial
  • Mounting: Through-Hole
  • Temperature Range: -55°C to 105°C
  • Features: Low ESR, Low ESL, and Long Life
  • Application: DC link and DC filtering
