Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 820pF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000846-ECH-U1C821JX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C821JX5 CAD Model

Description

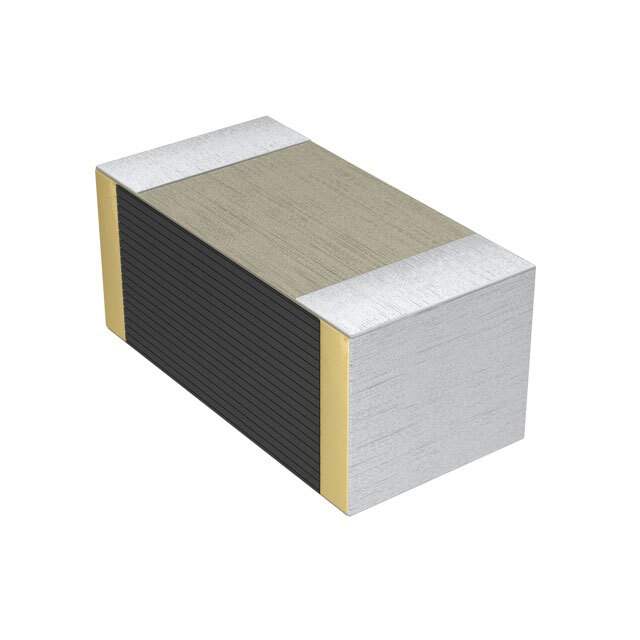

ECH-U1C821JX5 - Robust Multilayer Ceramic Capacitor

The ECH-U1C821JX5 is crafted to deliver robust performance under challenging conditions. This versatile capacitor is suitable for an array of applications, providing stability and precision where it's needed most.

  • Features:
  • Durable construction for extended use
  • Low inductance for high-speed applications
  • Consistent performance in extreme conditions
  • Applications:
  • Electric vehicles
  • Smart grid technology
  • Defense systems
  • Wearable technology

Select the ECH-U1C821JX5 for electronic designs that demand toughness and resilience. Its robust nature ensures that it will stand the test of time, making it a smart investment for cutting-edge projects.
