Same model may have multiple batches, images only for reference.

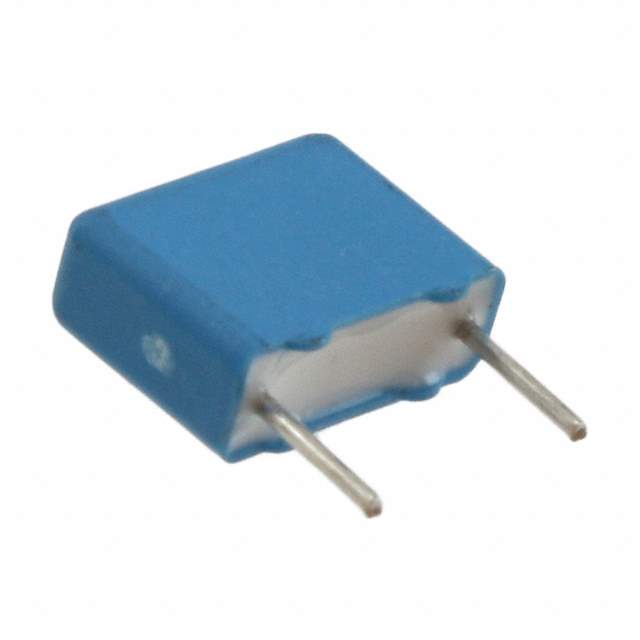

PHE450HK3680JR17 Real Image
Same model may have multiple batches, images only for reference.

PHE450HK3680JR17

Part No PHE450HK3680JR17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 680PF 5% 250VDC RADIAL / 680 pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE450
Package Bulk
Capacitance 680 pF
Tolerance ±5%
Voltage Rating - AC 180V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Frequency, Switching
Base Product Number PHE450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names F450KG681J250ALH0J,399-13002,F450KG681J250(1)
Standard Package 1,000
Win Source Part Number 1062924-PHE450HK3680JR17
Ultra Librarian 3D Model Ultra Librarian PHE450HK3680JR17 CAD Model

Description

The PHE450HK3680JR17 is a film capacitor manufactured by KEMET.

  • Series: PHE450
  • Capacitance: 680pF
  • Tolerance: ±5%
  • Voltage Rating (AC): 180V
  • Voltage Rating (DC): 250V
  • Package Type: Radial
  • Lead Spacing: 0.295" (7.50mm)
  • Mounting: Through-Hole
  • Package Height: 0.315" (8.00mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Standard Package: 1,000
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.25.0010
