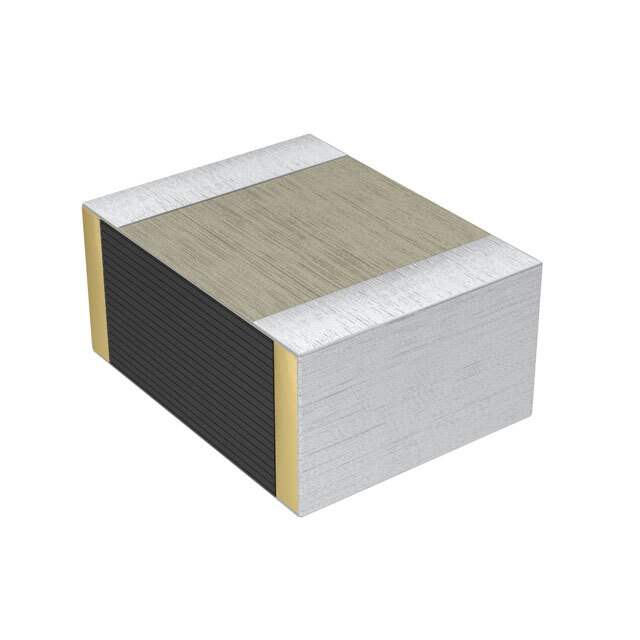

ECH-U1C683JX5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.068μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000845-ECH-U1C683JX5
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C683JX5 CAD Model

Description

ECH-U1C683JX5 - Versatile Multilayer Ceramic Capacitor

Featuring advanced materials and precision engineering, the ECH-U1C683JX5 offers exceptional performance for a wide range of electronic projects. Its versatile nature caters to both high-volume commercial applications and specialized devices.

  • Features:
  • Reliable performance under high humidity
  • Low dielectric absorption
  • Stable operation across a wide frequency range
  • Applications:
  • Medical devices
  • Audio equipment
  • Industrial automation
  • Renewable energy systems

The ECH-U1C683JX5 remains a top choice for engineers looking to implement ceramic capacitors in environments where performance and reliability cannot be compromised.
