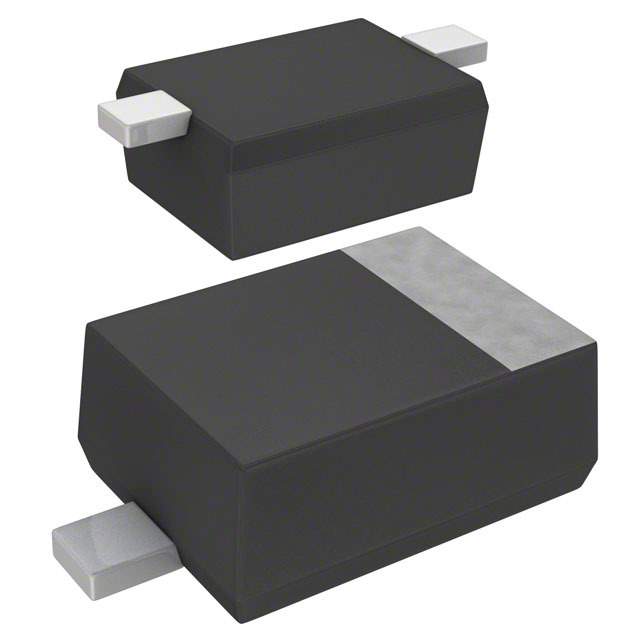

DB2J50100L

Part No DB2J50100L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 50V 200MA SMINI2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 200mA
Reverse Recovery Time (trr) 1.6ns
Current - Reverse Leakage @ Vr 200μA @ 50V
Capacitance @ Vr, F 4pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F5-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1032667-DB2J50100L
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DB2J50100L CAD Model

Description

The Panasonic Electronic Components Schottky diode is a reliable and efficient electronic component.

  • Voltage - Reverse (Max): 50V
  • Current - Average Rectified (Io): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 200mA
  • Reverse Recovery Time (trr): 1.6ns
  • Capacitance @ Vr, F: 4pF @ 10V, 1MHz
  • Operating Temperature: Up to 125°C
  • Package: SMini2-F5-B
  • Mounting Type: Printed Circuit Board
  • Manufacturer: Panasonic Electronic Components
