Same model may have multiple batches, images only for reference.

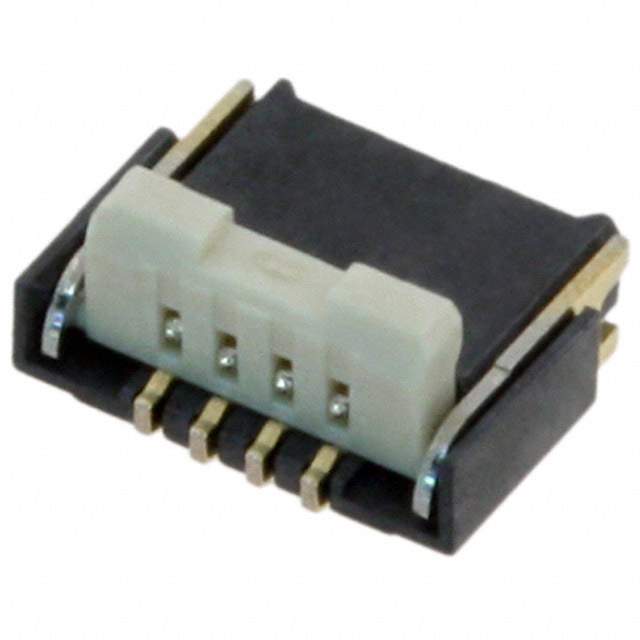

AYF530435 Real Image
Same model may have multiple batches, images only for reference.

AYF530435

Part No AYF530435
Manufacturer Panasonic
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC FPC 4POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 10 Weeks
Features 4 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Panasonic
Series Y5B
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 255-3056-2, 255-3056-1, AYF530435-ND, 255-3056-6
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862804-AYF530435
Ultra Librarian 3D Model Ultra Librarian AYF530435 CAD Model

Description

The AYF530435 is a Y5B series 4-position FFC/FPC connector suitable for use in surface mount, right-angle applications from Panasonic.

  • Operating Temperature: -55°C to 85°C
  • Packaging: Reel containing 5000 pieces
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 10 weeks
  • Contacts: Top and bottom 0.020" (0.50mm)
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
