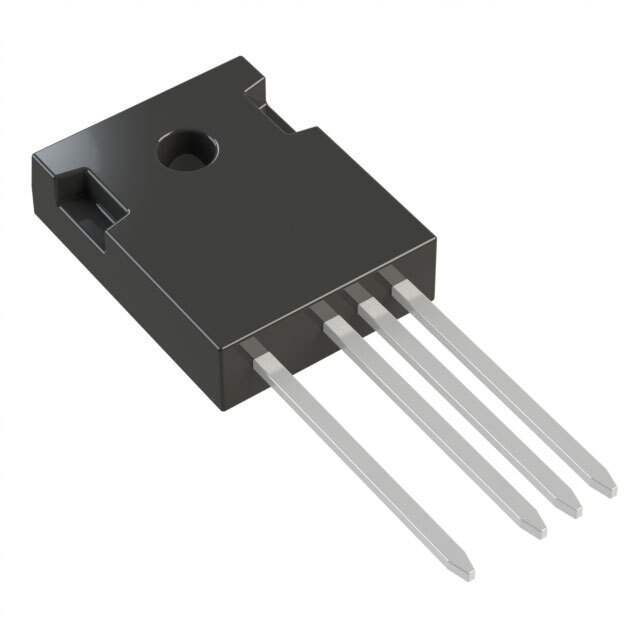

Microchip Technology's MSC040SMA120B4 Silicon Carbide Power Module

The MSC040SMA120B4 is a state-of-the-art silicon carbide (SiC) power module from Microchip Technology, designed to deliver high-efficiency and high-performance power conversion in a wide range of applications. This module is part of Microchip's extensive portfolio of SiC products that are revolutionizing the power electronics industry with their superior switching performance and thermal characteristics compared to traditional silicon-based solutions.

This power module integrates Microchip's advanced SiC MOSFET and SiC Schottky Barrier Diode (SBD) technology, enabling it to operate at higher frequencies with reduced switching losses. The result is a more compact and lighter system design with lower cooling requirements, which can significantly improve overall system efficiency and reliability.

Key Features:

• High Performance: The MSC040SMA120B4 offers a maximum continuous collector current of 40A and a collector-emitter voltage of 1200V, making it ideal for high-power applications.
• High Temperature Operation: With the ability to operate at junction temperatures up to 175°C, this module can handle demanding thermal environments and reduce the need for extensive cooling systems.
• Low Switching Losses: SiC technology provides lower switching losses, which improves efficiency, especially in high-frequency power switching applications.
• Robust Design: The module is encapsulated in a rugged package that ensures durability and long-term reliability, even in harsh operating conditions.
• Easy Integration: The MSC040SMA120B4 comes in an industry-standard package, allowing for straightforward integration into existing designs without the need for significant modifications.

Applications for the MSC040SMA120B4 include electric vehicles (EVs), renewable energy systems (such as solar inverters and wind turbines), high-performance power supplies, and industrial motor drives. By utilizing this advanced SiC power module, designers can achieve higher efficiency, faster switching speeds, and reduced system size and weight, leading to enhanced performance and a competitive edge in their respective markets.

Microchip Technology's commitment to innovation is evident in the MSC040SMA120B4, offering engineers a flexible and powerful solution for their high-voltage, high-temperature, and high-efficiency power conversion needs.
