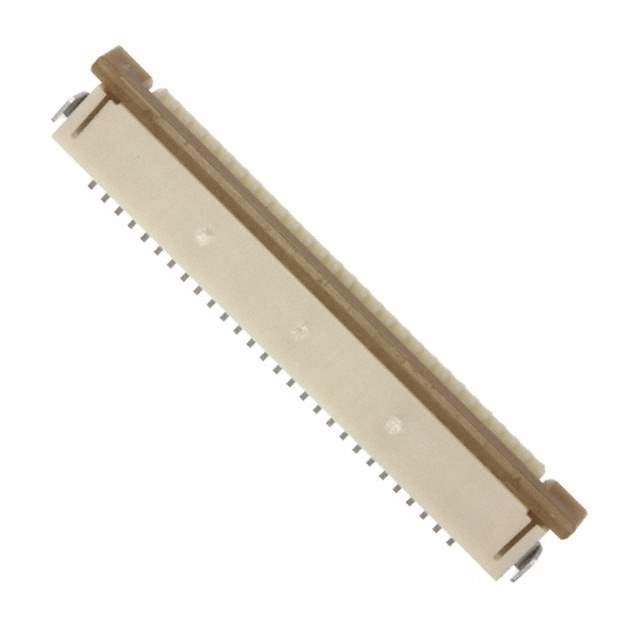

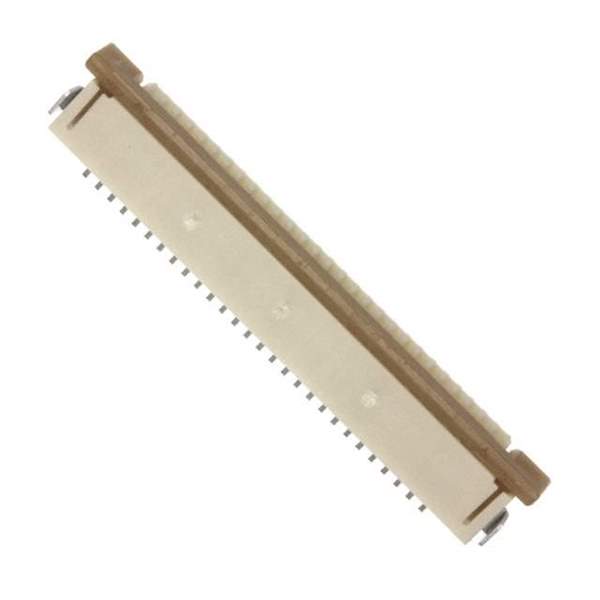

The Molex 52271-2879 is a Flat Flex Cable (FFC) connector designed for secure and reliable interconnection of FFC/FPC cables to printed circuit boards (PCBs). This connector, part of Molex's wide array of interconnect solutions, offers a balance of performance and space efficiency for diverse electronic applications.

Applications

• Digital cameras and camcorders
• Portable gaming consoles
• GPS navigation devices
• Barcode scanners
• Industrial handheld terminals
• Security systems

Features

• Low-profile design for space-saving applications
• High-temperature resistant housing for reflow soldering
• Robust locking mechanism for secure cable retention
• Gold-plated contacts for enhanced conductivity
• RoHS compliant for environmental safety
• Halogen-free construction
• Polarization features to prevent incorrect mating

Benefits

• Ensures stable and consistent electrical performance
• Facilitates efficient assembly with user-friendly cable insertion
• Optimizes space utilization on PCBs
• Provides long-term reliability in harsh environments
• Complies with industry environmental standards
• Minimizes the risk of accidental disconnection

Additional Details

The Molex 52271-2879 FFC connector is characterized by its specific pitch (distance between contacts) and circuit count, determining compatibility with specific FFC cable types. The connector housing is typically constructed from high-temperature thermoplastic, designed to withstand the elevated temperatures of reflow soldering processes. Critical specifications also include the connector's current and voltage ratings, which must be considered to ensure safe and reliable operation within the intended application. Features such as polarization prevent mis-mating, and strain relief elements are incorporated to minimize stress on the cable and connection points.
