Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021131-AXT620124
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AXT6
Introduction Date November 12, 2008
ECCN EAR99
Estimated EOL Date 2024
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT620124 CAD Model

Description

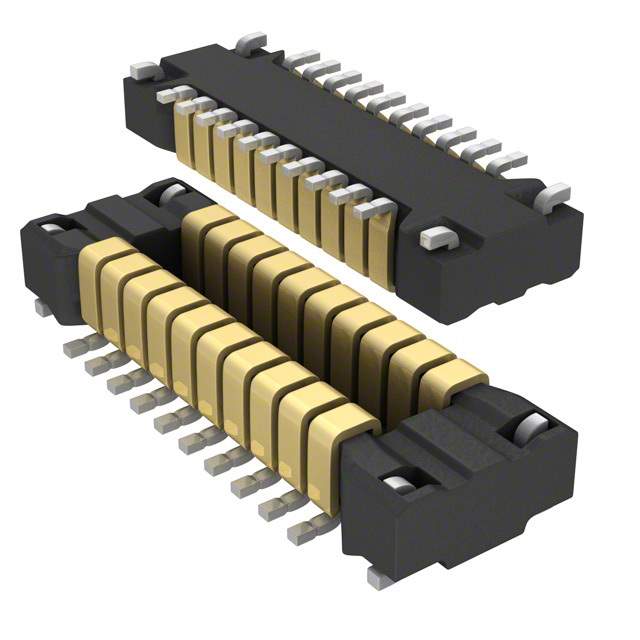

The Panasonic Electric Works AXT620124 is a header connector with center strip contacts.

  • Manufacturer: Panasonic Electric Works
  • Positions: 20 positions
  • Pitch: 0.016" (0.40mm)
  • Plating: Gold-plated
  • Feature: Solder retention
  • Series: AXT6 series
  • Package: Reel package with 1k pcs per package
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.033" (0.84mm)
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: 2024
