MX34020UF1
Same model may have multiple batches, images only for reference.

MX34020UF1

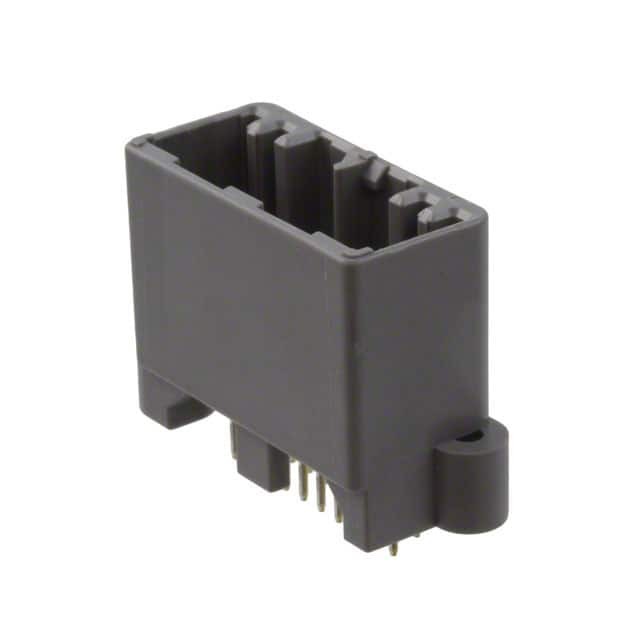

Part No MX34020UF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.2MM / Connector Header Through Hole 20 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.925" (23.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Mated Stacking Heights 29.95mm
Applications Automotive
Base Product Number MX34020U
Standard Package 18 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 886640-MX34020UF1
Ultra Librarian 3D Model Ultra Librarian MX34020UF1 CAD Model

Description

The 886640-MX34020UF1 is a male pin header connector designed for automotive applications.

  • Series: MX34
  • Positions: 20
  • Feature: Mounting flange feature
  • Mounting: Through-hole mountable connector
  • Package: Tube package
  • Standard Package: 18 pcs
  • Contact Material: Brass
  • Contact Finish: Tin finish for mating and post contacts
  • Manufacturer: JAE Electronics
  • Status: Active product
  • Suitable for: Automotive applications where a secure and reliable connection is required
