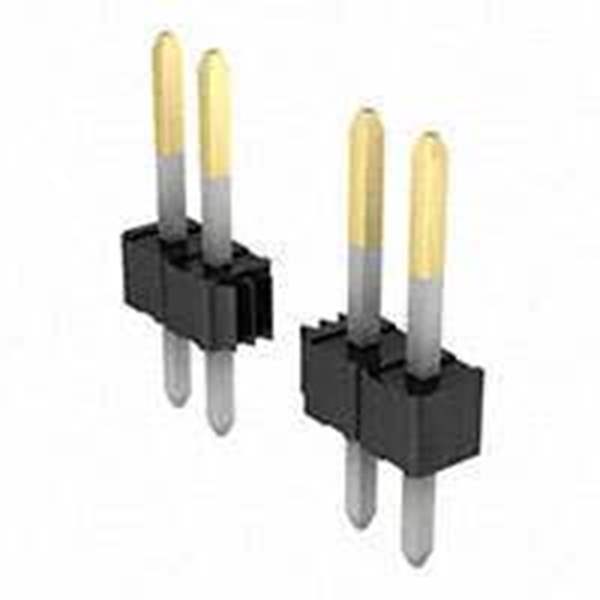

22-28-4063Molex
Same model may have multiple batches, images only for reference.

22-28-4063

Part No 22-28-4063
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM
Datasheet
22-28-4063 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging  Bulk
Part Status Active
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Shrouding Unshrouded
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.455" (11.56mm)
Ultra Librarian 3D Model Ultra Librarian 22-28-4063 CAD Model

Description

Connector Header Through Hole 6 position 0.100" (2.54mm)
