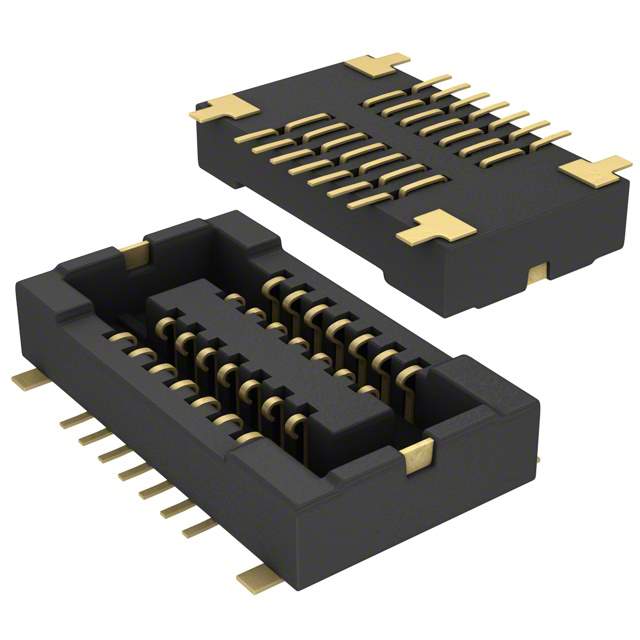

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 14
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021114-AXT514124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT514124 CAD Model

Description

The Panasonic Electric Works 1021114-AXT514124 is a 14-position socket connector with outer shroud contacts.

  • Positions: 14
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Connector Type: Socket
  • Rows: Two
  • Contact Finish: Gold
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.038" (0.97mm)
  • Category: Connectors, Interconnects
  • Status: Active
  • Package: Reel
  • Quantity per Package: 3k pcs
