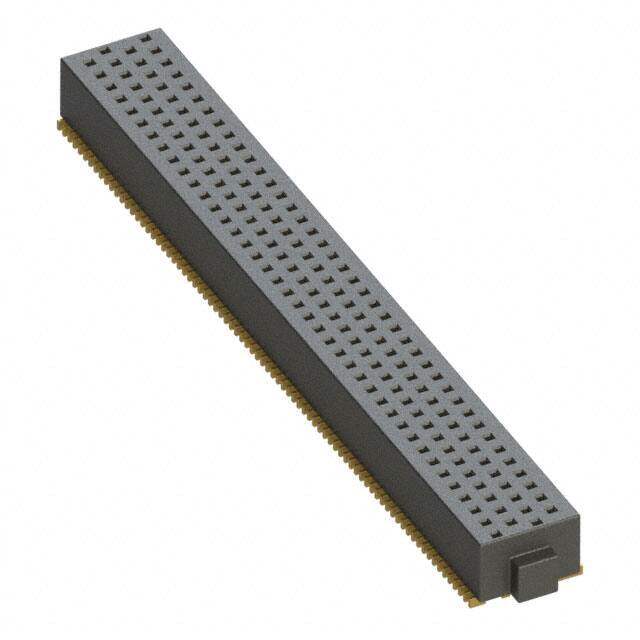

SOLC-140-02-S-Q Real Image
Same model may have multiple batches, images only for reference.

SOLC-140-02-S-Q

Part No SOLC-140-02-S-Q
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 160POS 0.05 GOLD SMD / 160 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
SOLC-140-02-S-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series FOURRAY™ SOLC
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 160
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.160" (4.06mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 2.4A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SOLC-140
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 896875-SOLC-140-02-S-Q
Ultra Librarian 3D Model Ultra Librarian SOLC-140-02-S-Q CAD Model

Description

The SOLC-140-02-S-Q is a rectangular connector header from Samtec Inc.

  • Series: FOURRAY™ SOLC
  • Application: Board-to-board
  • Number of Positions: 160
  • Pitch: 0.050" (1.27mm)
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Number of Rows: Four
  • Termination: Solder
  • Fastening Type: Push-pull
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Mounting Type: Surface mount
  • Package: Tube
  • Current Rating: 2.4A per contact
