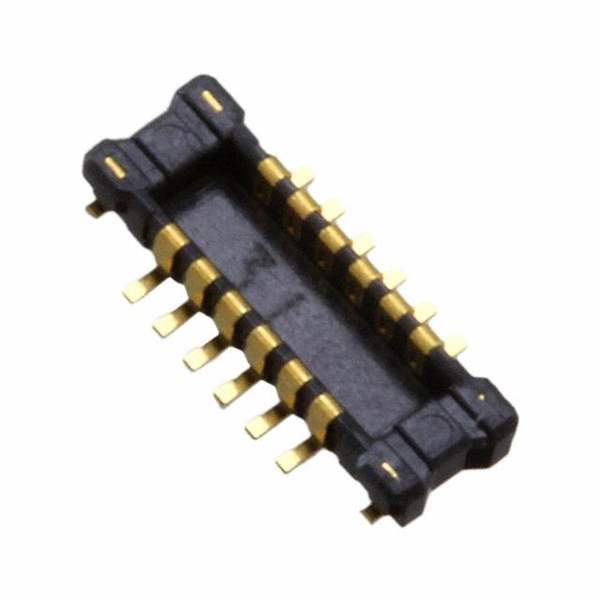

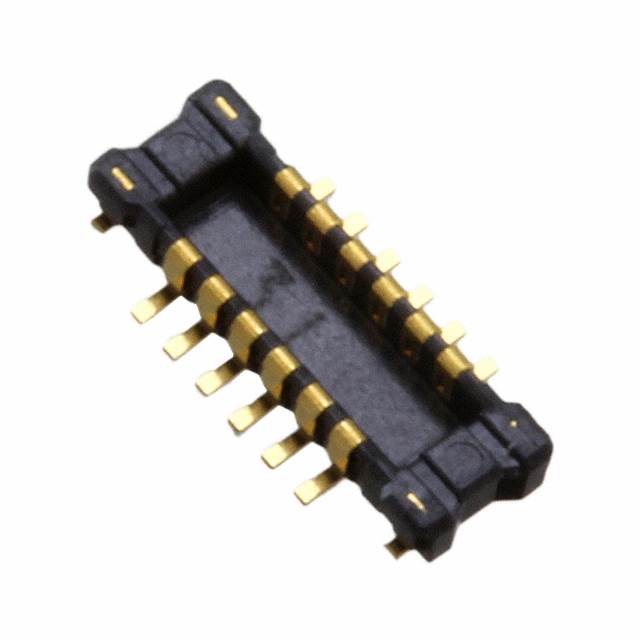

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 12
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020930-AXE612124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE612124 CAD Model

Description

The Panasonic Electric Works AXE612124 is a high-quality electronic component that is designed for use in a variety of applications.

  • Pitch: 0.016" (0.40mm)
  • Positions: 12
  • Contact Finish: Gold
  • Mounting: Surface-Mounting
  • Component Type: Active
  • Popularity Rating: Medium
  • Supply and Demand Status: Sufficient
  • Package: Reels of 5k pcs
