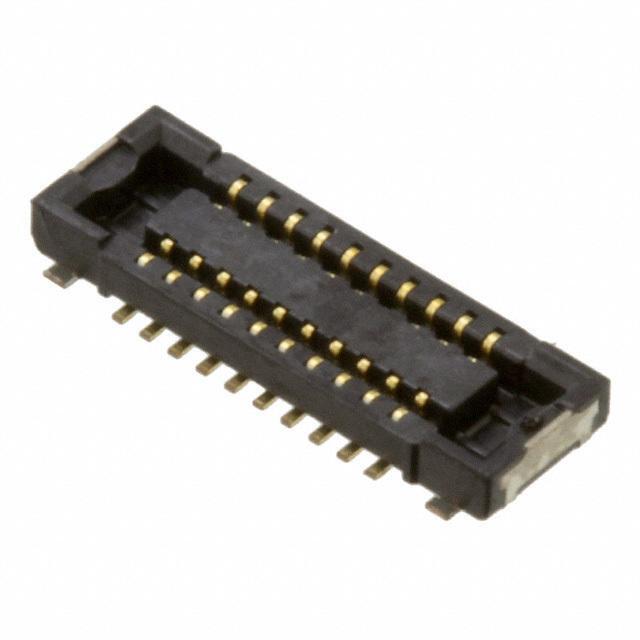

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE520
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 844910-AXE520127
Ultra Librarian 3D Model Ultra Librarian AXE520127 CAD Model

Description

The 844910-AXE520127 is a rectangular connector array designed for board-to-board connections from Panasonic.

  • Series: A4S
  • Number of Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Connector Type: Socket
  • Contact Type: Center Strip
  • Number of Rows: 2
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Standard Package: 5,000 pcs
  • Mounting Type: Surface Mount
  • Height Above Board: 0.030" (0.75mm)
  • Product Status: Active
  • Series: AXE520
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Mated Stacking Height: 0.8mm and 1mm
