Same model may have multiple batches, images only for reference.

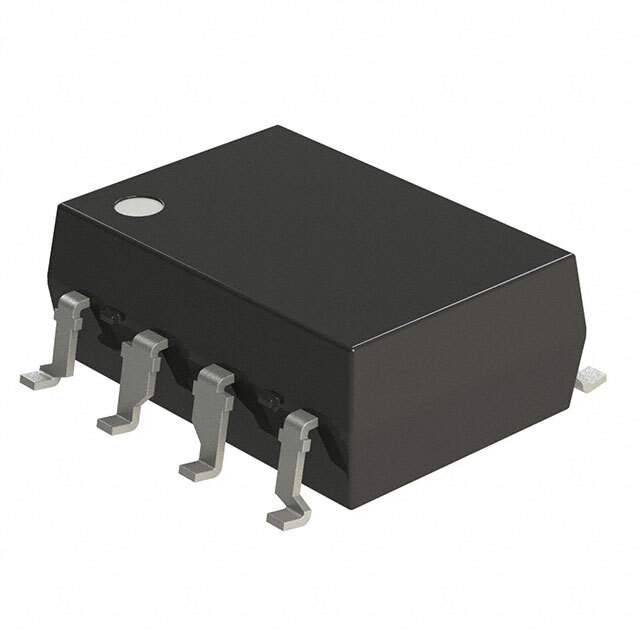

PS9587-AX Real Image
Same model may have multiple batches, images only for reference.

PS9587-AX

Part No PS9587-AX
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 8DIP
Datasheet
PS9587-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 15kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1090242-PS9587-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9587-AX CAD Model

Description

The CEL PS9587-AX is a high-speed optocoupler designed for use in industrial applications.

  • Manufacturer: CEL
  • Data Rate: 10Mbps
  • Input Type: DC
  • Forward Voltage: 1.65V
  • Rise Time: 20ns
  • Fall Time: 10ns
  • Isolation Voltage: 5000Vrms
  • Package: 8-DIP
  • Channel Output Current: 25mA
  • Continuous Forward Current: 30mA
  • Supply and Demand Status: Balanced
