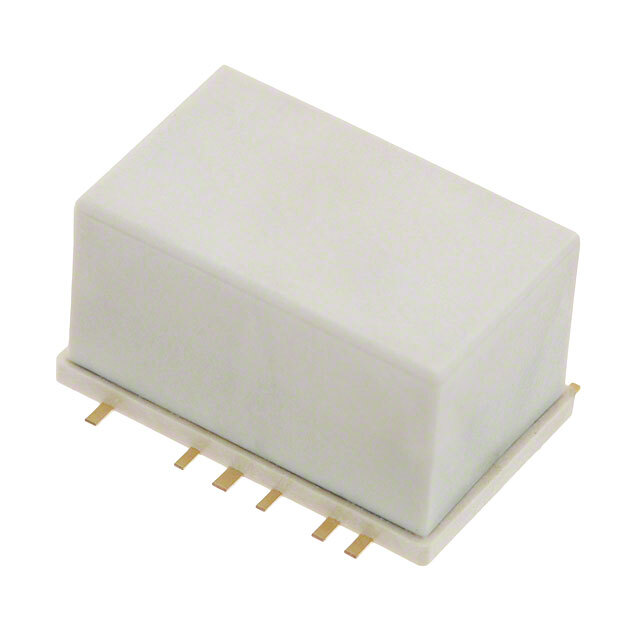

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARS
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 6 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Base Product Number ARS14A
Standard Package 40 pcs
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 861795-ARS14A4H
Ultra Librarian 3D Model Ultra Librarian ARS14A4H CAD Model

Description

The ARS series high-frequency relay, part number 861795-ARS14A4H, is a reliable electronic component manufactured by Panasonic.

  • Category: RF relays
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Gold plating
  • Contact Rating: 500 mA
  • Switching Voltage: 30VDC
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 101 Ohms
  • Coil Current: 44.4 mA
  • Operate Time: 10 ms
  • Release Time: 6 ms
  • Mounting: Surface Mount
  • Temperature Range: -40°C to 70°C
