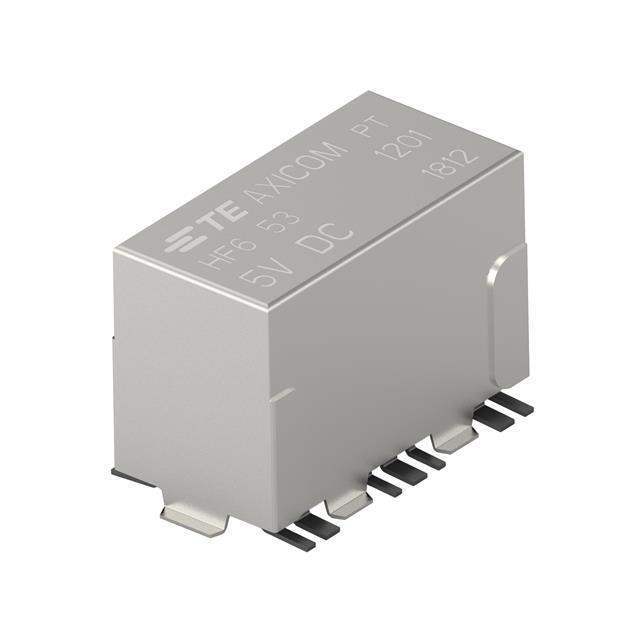

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309664-1462052-3
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Relays > High Frequency (RF) Relays
Part Status Active
Coil Type Non Latching
Coil Current 28.1 mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Ultra Librarian 3D Model Ultra Librarian 1462052-3 CAD Model

Description

Typical applications Measurement and test equipment ATE, wireless base stations and antennas, wireless infrastructure, RF power amplifier.
