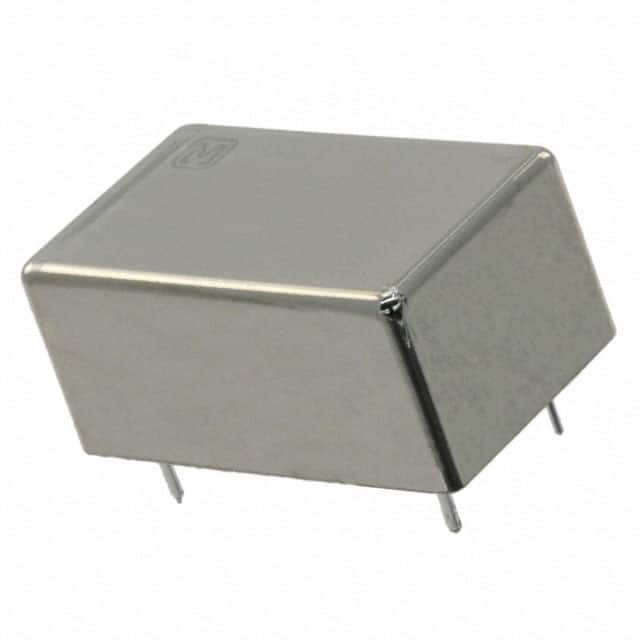

Same model may have multiple batches, images only for reference.
ARX1012
Same model may have multiple batches, images only for reference.

ARX1012

Part No ARX1012
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 500MA 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARX
Package Tube
Product Status Obsolete
Coil Type Non Latching
Coil Current 16.7 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 6 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 720 Ohms
Base Product Number ARX10
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 911686-ARX1012
Ultra Librarian 3D Model Ultra Librarian ARX1012 CAD Model

Description

The Panasonic ARX series high-frequency relay, with the part number 911686-ARX1012, is a versatile component suitable for RF applications.

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 12VDC
  • Mounting Type: through-hole
  • Package: tube
  • Status: obsolete
