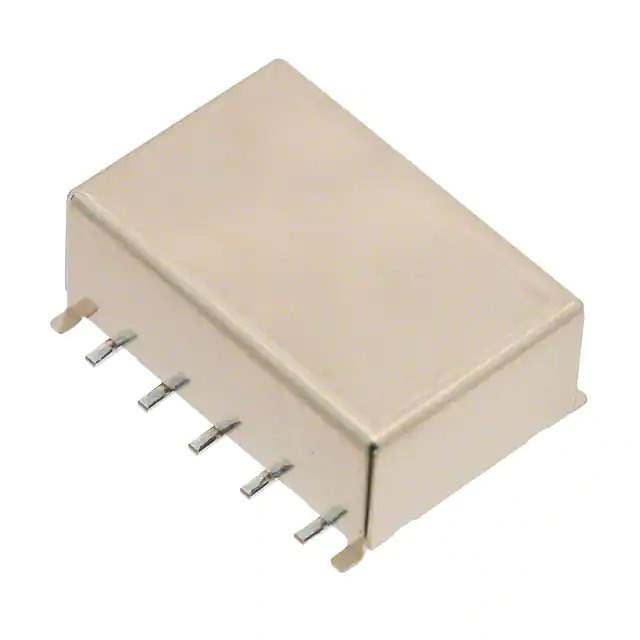

ARA210A4H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARA
Package Tube
Product Status Active
Coil Type Latching, Single Coil
Coil Current 15.6 mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Operate Time 4 ms
Release Time 4 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Coil Power 70mW
Coil Resistance 289 Ohms
Base Product Number ARA210
Standard Package 40 pcs
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 911684-ARA210A4H
Ultra Librarian 3D Model Ultra Librarian ARA210A4H CAD Model

Description

The 911684-ARA210A4H is a high-frequency (RF) relay in the ARA series.

  • Contact Form: DPDT (2 Form C)
  • Termination: gull wing style
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 289 Ohms
  • Contact Rating: 1A @ a switching voltage of 30VDC
  • Mounting: surface mounted
  • Operating Temperature Range: -40°C to 85°C
  • Status: active
  • Manufacturer: Panasonic
  • Package: tube
  • Standard Quantity: 40 pcs
  • Must Operate Voltage: 3.38VDC
  • HTSUS: 8536.41.0020
