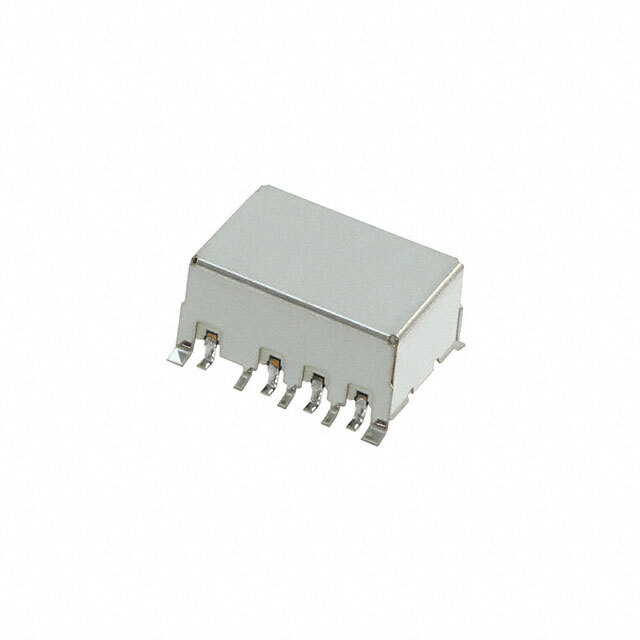

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Coil Type Latching, Single Coil
Coil Current 16.7 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Operate Time 10 ms
Release Time 10 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1549639-ARS1112
Ultra Librarian 3D Model Ultra Librarian ARS1112 CAD Model
