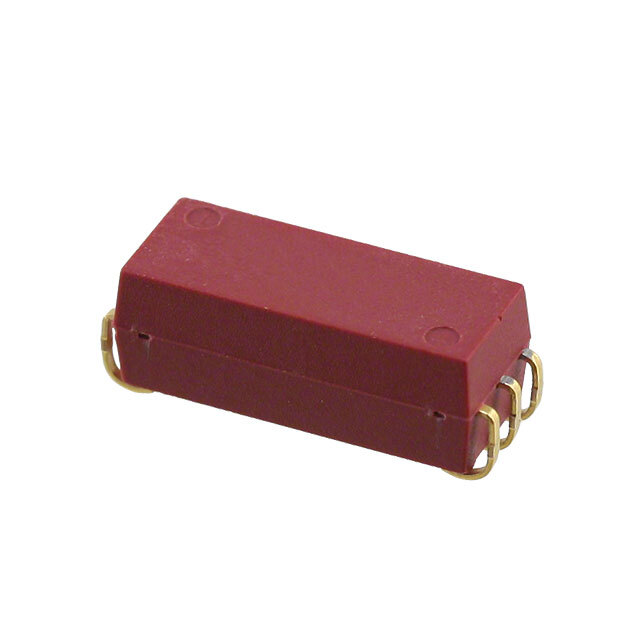

9402-05-20 Coto Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9402-05-20

Part No 9402-05-20
Manufacturer Coto Technology
Catalog High Frequency (RF) Relays
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Coto Technology
Series 9400
Packaging Tube
Coil Type Non Latching
Coil Current 25 mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.4 ms
Release Time 0.2 ms
Mounting Type Surface Mount
Termination Style J Lead
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 200 Ohms
Base Product Number 9402-0
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1480849-9402-05-20
Ultra Librarian 3D Model Ultra Librarian 9402-05-20 CAD Model
