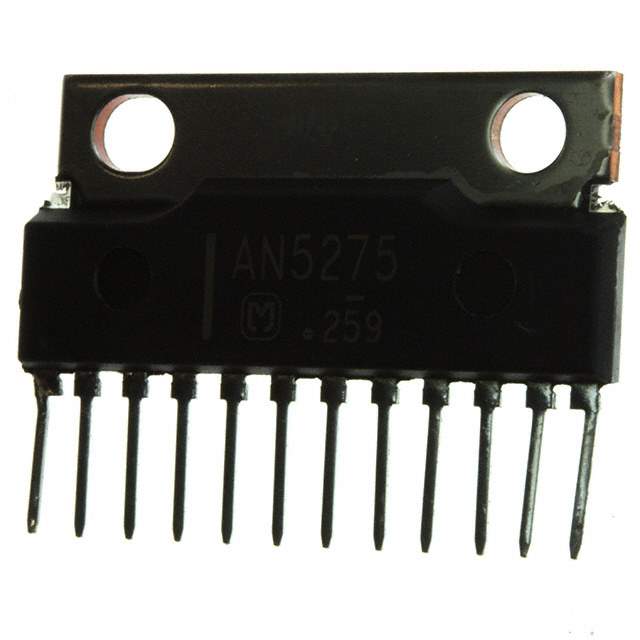

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels at Load 15W x 2 at 8Ohm
Supply Voltage (V) 10V ~ 40V
Features Mute, Short-Circuit and Thermal Protection
Mounting Style Through Hole
Temperature Range - Operating -25°C ~ 80°C
Supplier Device Package 12-SIL
Manufacturer Package 12-SIP + Tab
Family Part Number AN5275
Manufacturer Pack Quantity 15
MSL Level 1 (Unlimited)
Win Source Part Number 1144620-AN5275
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AN5275 CAD Model

Description

The Panasonic Electronic Components AN5275 is a class AB integrated circuit that features mute, short-circuit, and thermal protection from Panasonic Electronic Components.

  • Output Channels: 2-Channel (Stereo)
  • Supply Voltage: 10V to 40V
  • Maximum Output Power: 15W x 2 @ 8Ohm
  • Product Status: Obsolete
  • Packaging: Bulk
  • Mounting Style: Through Hole
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 15
  • Case/Package: 12-SIP + Tab
  • Operating Temperature Range: -25°C to 80°C
