Introducing the TDA7056B Integrated Circuit from NXP Semiconductors

The TDA7056B is a high-fidelity, monolithic integrated circuit designed by NXP Semiconductors specifically for portable applications and any product requiring a small, low-power audio amplifier. It is part of NXP's reputable line of audio amplification ICs, known for their reliability and performance.

This innovative amplifier is based on the bridge-tied load (BTL) principle, enabling it to provide a high output power with a minimal number of external components. The TDA7056B is particularly well-suited for mono output applications, such as small television sets, radios, and personal computers, where space is at a premium and energy efficiency is essential.

Key Features of the TDA7056B:

• Power Output: The TDA7056B is capable of delivering 3 W to 4 W of continuous output power over a wide range of supply voltages, making it versatile for various applications.
• Supply Voltage: It operates over a supply voltage range from 4.5 V to 18 V, accommodating a variety of power sources and ensuring consistent performance across different power scenarios.
• DC Volume Control: One of the standout features of the TDA7056B is its DC volume control, which allows users to adjust the audio output level without the need for additional components like potentiometers.
• Thermal Protection: The IC includes integrated thermal protection circuitry, which prevents damage to the device under excessive temperature conditions, ensuring long-term reliability and safety.
• Minimal External Components: Thanks to its BTL architecture, the TDA7056B requires very few external components, which helps to reduce overall system cost and simplifies the design process.

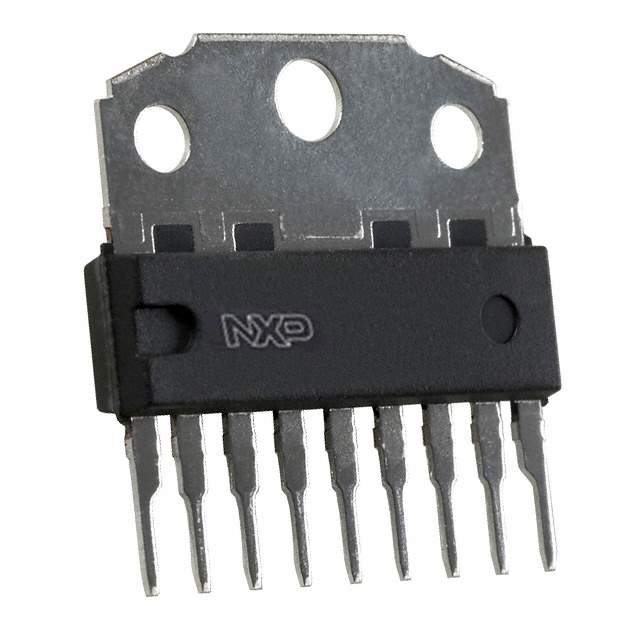

The TDA7056B is available in a compact 9-lead single in-line (SIL) plastic power package, making it easy to integrate into a variety of products without taking up significant space on the PCB. Its simplicity, coupled with NXP's reputation for quality, makes the TDA7056B an excellent choice for designers looking to add high-quality audio to their projects without compromising on space or power efficiency.

With the TDA7056B, NXP Semiconductors continues to demonstrate its commitment to providing innovative audio solutions that meet the needs of modern electronics. Whether for personal, educational, or commercial applications, the TDA7056B stands out as a reliable and cost-effective audio amplifier solution.
