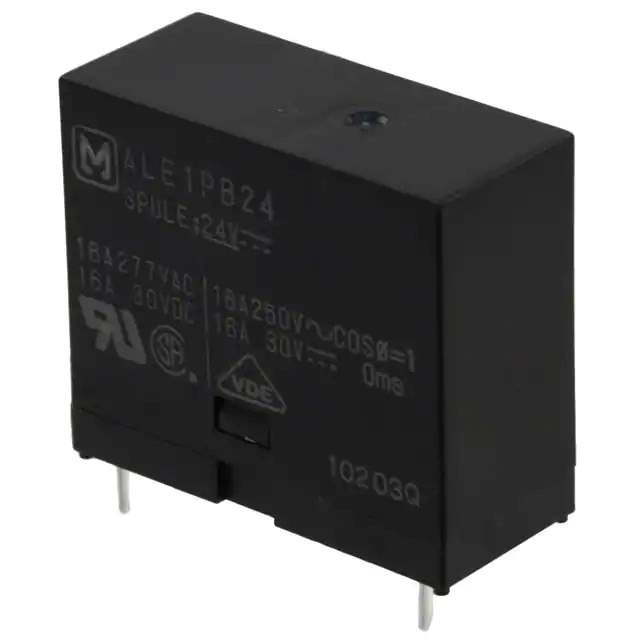

ALE1PB05 Real Image
Same model may have multiple batches, images only for reference.

ALE1PB05

Part No ALE1PB05
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ALE
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.25 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 63 Ohms
Base Product Number ALE1PB
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860879-ALE1PB05
Ultra Librarian 3D Model Ultra Librarian ALE1PB05 CAD Model

Description

The ALE1PB05 is a power relay with a contact form of SPST-NO (1 Form A) manufactured by Panasonic.

  • Category: Power Relays, Over 2 Amps
  • Series: ALE
  • Termination Style: PC Pin
  • Package Type: Bulk
  • Standard Package: 100 pieces
  • Coil Resistance: 63 Ohms
  • Coil Current: 80 mA
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 16 A
  • Maximum Switching Voltage: 277VAC
  • Product Status: Obsolete
  • ECCN: EAR99
  • Threat of Fake Products: 65%
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.41.0050
