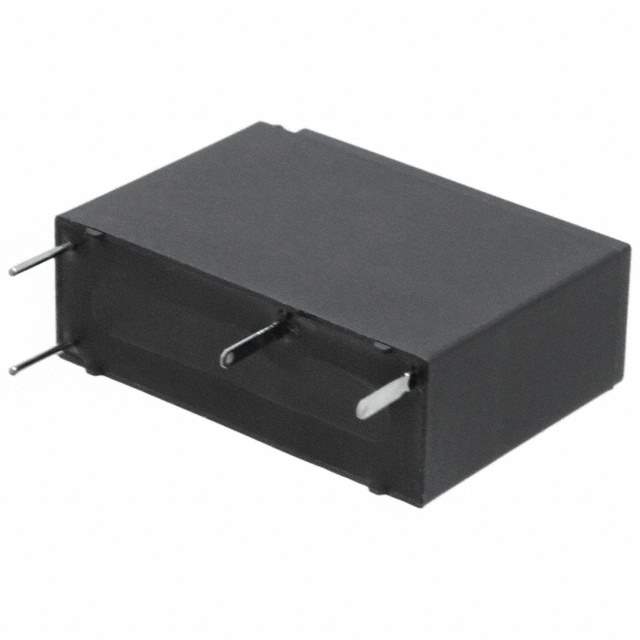

ALDP112W

Part No ALDP112W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 100
Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 091971-ALDP112W
Family Name ALDP112W
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ALDP112W CAD Model

Description

Description

The ALDP112W is a high-quality component that offers exceptional durability and efficiency. It's tailored for applications that demand robust performance in challenging conditions.

Features and Benefits

  • Superior durability
  • High efficiency
  • Resistance to environmental stress
  • Wide temperature range functionality

Applications

  • Outdoor electronic systems
  • Automotive applications
  • Heavy machinery controls
  • Aerospace technology

Additional details: It is particularly noted for its ability to maintain performance standards under adverse environmental conditions.
