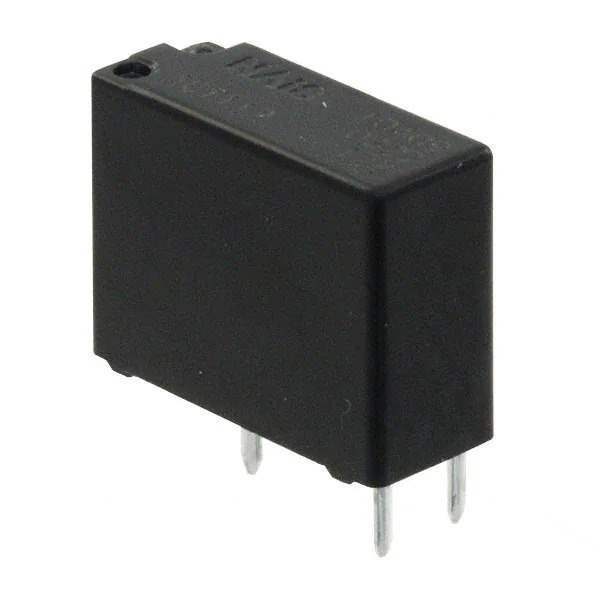

ACTP512 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series ACTP
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 83.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 30 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7.2 VDC
Must Release Voltage 1 VDC
Operate Time 10 ms
Release Time 10 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1W
Coil Resistance 144 Ohms
Base Product Number ACTP51
Standard Package 30 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 859373-ACTP512
Ultra Librarian 3D Model Ultra Librarian ACTP512 CAD Model

Description

The 859373-ACTP512 is an automotive relay designed for various automotive applications. Panasonic manufactures it.

  • Type: Automotive Relay
  • Series: ACTP51
  • Termination Style: PC pin
  • Contact Form: Double Pole, Single Throw
  • Coil Voltage: 12VDC
  • Coil Resistance: 144 Ohms
  • Contact Rating: 30 A
  • Switching Voltage: 14VDC
  • Coil Power: 1W
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Application: Automotive Systems
