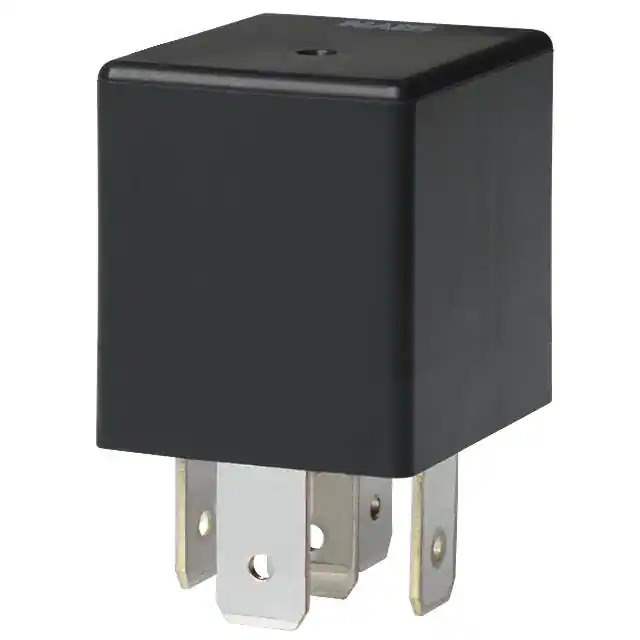

CB1A-D-24V Real Image
Same model may have multiple batches, images only for reference.

CB1A-D-24V

Part No CB1A-D-24V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 20A 24V
Datasheet
CB1A-D-24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series CB
Package Bulk
Product Status Obsolete
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 28VDC - Nom
Must Operate Voltage 14 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Features Diode, Sealed - Fully
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.8W
Coil Resistance 320 Ohms
Base Product Number CB1A
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 576570-CB1A-D-24V
Ultra Librarian 3D Model Ultra Librarian CB1A-D-24V CAD Model

Description

The Panasonic 576570-CB1A-D-24V is an automotive relay from the CB series.

  • Product Name: 576570-CB1A-D-24V
  • Manufacturer: Panasonic
  • Series: CB
  • Type: Automotive Relay
  • Termination Style: Plug-In, Quick Connect
  • Termination Size: 0.250" (6.3mm)
  • Diode: Equipped with a diode
  • Sealed: Fully sealed
  • Packaging: Bulk
  • Standard Package: 50 pcs
  • Coil Resistance: 320 Ohms
  • Coil Current: 75 mA
  • Operate Time: 15 ms
  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 20 A
  • Switching Voltage: 28VDC
  • Coil Power: 1.8W
  • Socketable: Yes, for easy installation
  • Operating Temperature: -40°C to 85°C
  • Must Operate Voltage: 14 VDC
  • Must Release Voltage: 2.4 VDC
  • Status: Obsolete
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • HTSUS Code: 8536.41.0050
