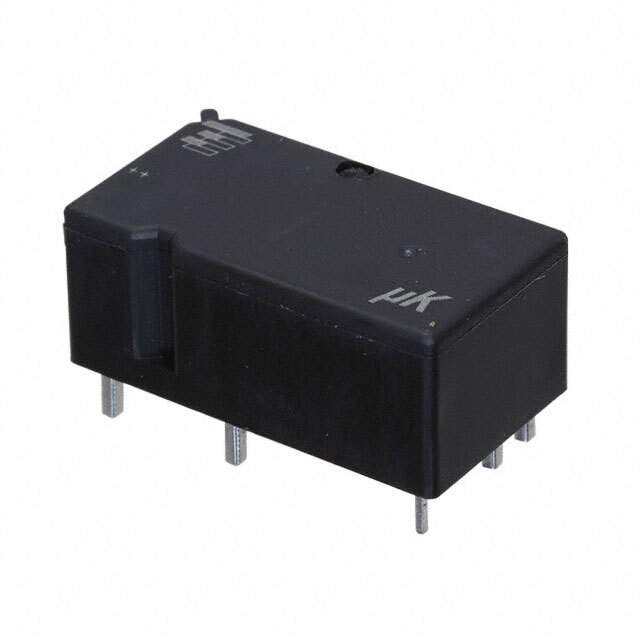

V23086C2001A403 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series Micro Relay K
Package Bulk
Coil Type Non Latching
Coil Current 47.2 mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 25 A
Must Operate Voltage 6.9 VDC
Must Release Voltage 1.5 VDC
Operate Time 3 ms
Release Time 1.5 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Resistance 254 Ohms
Base Product Number V23086
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1315655-V23086C2001A403
Ultra Librarian 3D Model Ultra Librarian V23086C2001A403 CAD Model

Description

The V23086C2001A403 is a DPDT (2 Form C) automotive relay with a contact rating of 25A from TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 12VDC
  • Coil Resistance: 254 Ohms
  • Temperature Range: -40°C to 105°C
  • Must Operate Voltage: 6.9 VDC
  • Must Release Voltage: 1.5 VDC
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Contact Rating: 25A
