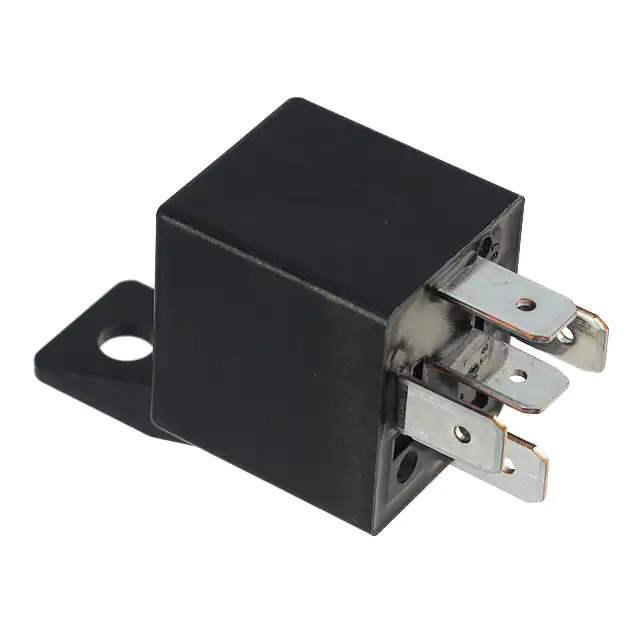

CB1-M-24V Real Image
Same model may have multiple batches, images only for reference.

CB1-M-24V

Part No CB1-M-24V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series CB
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Switching Voltage 28VDC - Nom
Must Operate Voltage 14 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Features Sealed - Fully
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.8W
Coil Resistance 320 Ohms
Base Product Number CB1-M
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 576572-CB1-M-24V
Ultra Librarian 3D Model Ultra Librarian CB1-M-24V CAD Model

Description

The 576572-CB1-M-24V is an automotive relay from the CB series. Manufactured by Panasonic, this relay is an active product in the market.

  • Termination Style: Quick Connect
  • Termination Size: 0.250" (6.3mm)
  • Contact Rating (Current): 20 A
  • Switching Voltage: 28VDC
  • Coil Voltage: 24VDC
  • Coil Resistance: 320 Ohms
  • Coil Current: 75 mA
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Coil Power: 1.8W
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C ~ 85°C
  • Sealed: Fully Sealed
  • Must Operate Voltage: 14 VDC
  • Must Release Voltage: 2.4 VDC
  • Coil Type: Non-Latching
