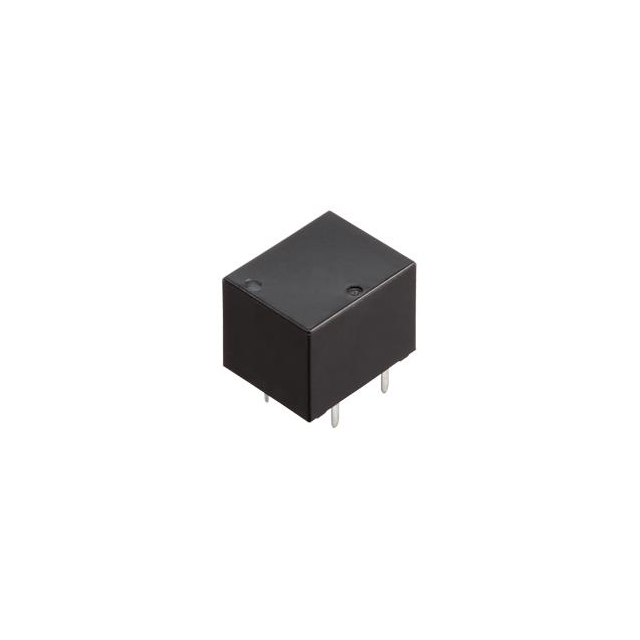

ACTB3C2A52 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic Electric Works
Series ACTB
Package Tube
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 20 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.8 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Coil Power 900mW
Coil Resistance 160 Ohms
Base Product Number ACTB3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-ACTB3C2A52
Standard Package 25
Win Source Part Number 1042612-ACTB3C2A52
Ultra Librarian 3D Model Ultra Librarian ACTB3C2A52 CAD Model

Description

The Panasonic Electric Works 1042612-ACTB3C2A52 is a sealed, fully automotive relay with a SPDT (1 Form C) x 2 contact form.

  • Contact Material: Silver alloy
  • Contact Rating: 20A
  • Switching Voltage: 14VDC - Nom
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Coil Current: 75mA
  • Operate Time: 10ms
  • Release Time: 10ms
  • Coil Power: 900mW
  • Mounting: Through a hole
  • Temperature Range: -40°C ~ 85°C
  • Must Operate Voltage: 6.5VDC
  • Must Release Voltage: 0.8VDC
  • Package: Tube
  • Standard Package: 25
  • Application: Automotive relays
