Same model may have multiple batches, images only for reference.

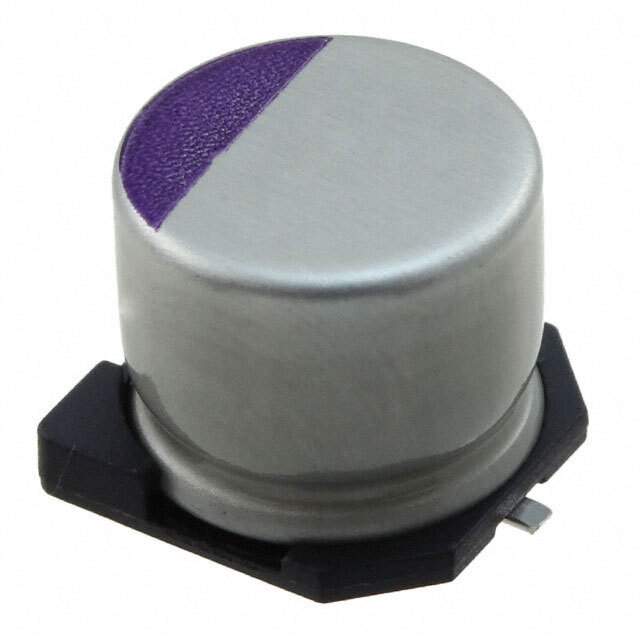

6SVPS220M Real Image
Same model may have multiple batches, images only for reference.

6SVPS220M

Part No 6SVPS220M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Surface Mount Type | CAP ALUM POLY 220UF 20% 6.3V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 22mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 161mA at 120Hz
Ripple Current at High Frequency 3.22A at 100kHz
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 1129702-6SVPS220M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6SVPS220M CAD Model

Description

This is a Panasonic polymer capacitor with a capacitance of 220μF and a tolerance of ±20%.

  • Voltage Rating: 6.3V
  • ESR (Equivalent Series Resistance): 22mOhm
  • Package: radial, can - SMD
  • Mounting Style: SMD
  • Description: The product is designed for general-purpose applications and is available in reel packaging.
  • Height - Seated (Max): 0.276" (7.00mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Operating Temperature: -55°C ~ 105°C
  • Manufacturer: Panasonic Electronic Components
