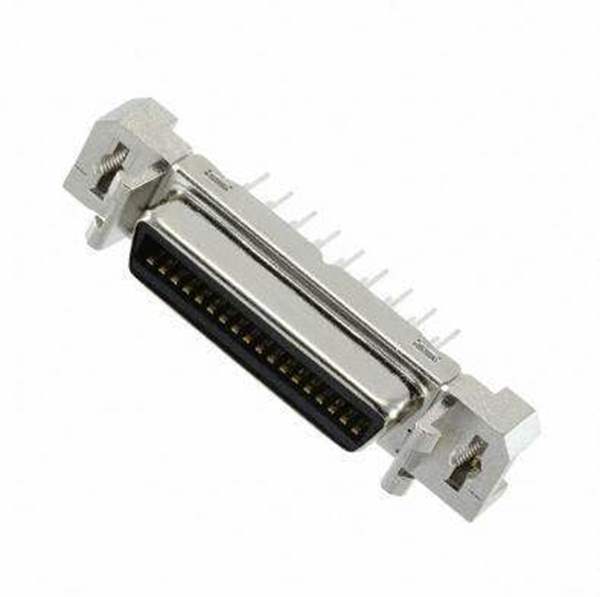

5917334-5TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Tube
Product Status Obsolete
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Mounting Type Panel Mount, Through Hole
Termination Solder
Flange Feature Housing/Shell (M2.6)
Win Source Part Number WS1209677-5917334-5
Ultra Librarian 3D Model Ultra Librarian 5917334-5 CAD Model

Description

36 Position Receptacle Connector Panel Mount, Through Hole Solder
