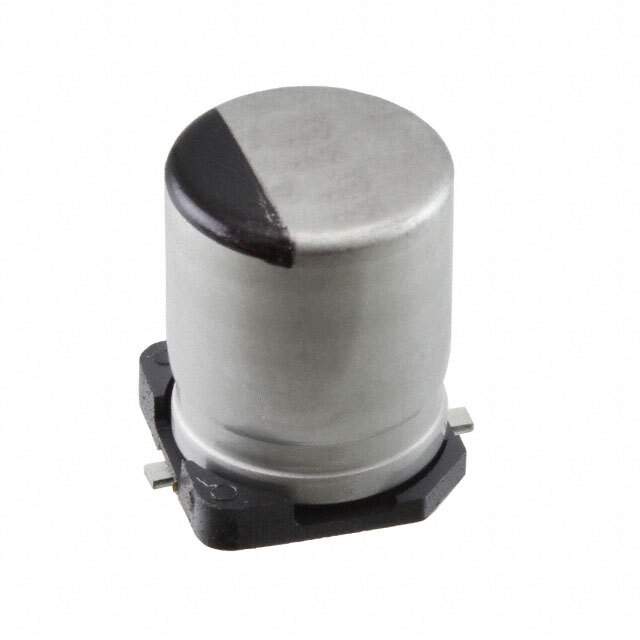

Same model may have multiple batches, images only for reference.

EEH-ZK1V331P

Name: EEH-ZK1V331P
Brand: Panasonic
SKU: 1308430
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

Part No	EEH-ZK1V331P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	ZK
Package	Tape & Reel
Type	Hybrid
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	20mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	420 mA @ 100 Hz
Ripple Current @ High Frequency	2.8 A @ 100 kHz
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEH-ZK
Other Names	EEHZK1V331P,P121403TR,P121403DKR,P121403CT
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308430-EEH-ZK1V331P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZK1V331P CAD Model

Description

The EEH-ZK1V331P is a hybrid type aluminum-polymer capacitor manufactured by Panasonic.

Voltage Rating: 35V
Capacitance: 330 µF
Tolerance: ±20%
AEC-Q200: Rated
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Application: Automotive
Height: 0.413" (10.50mm)
Package/Case: Radial, Can - SMD
Temperature Range: -55°C ~ 125°C
Lifetime: 4000 Hrs @ 125°C
ESR: 20mOhm
Ripple Current: 420 mA @ 100 Hz and 2.8 A @ 100 kHz
