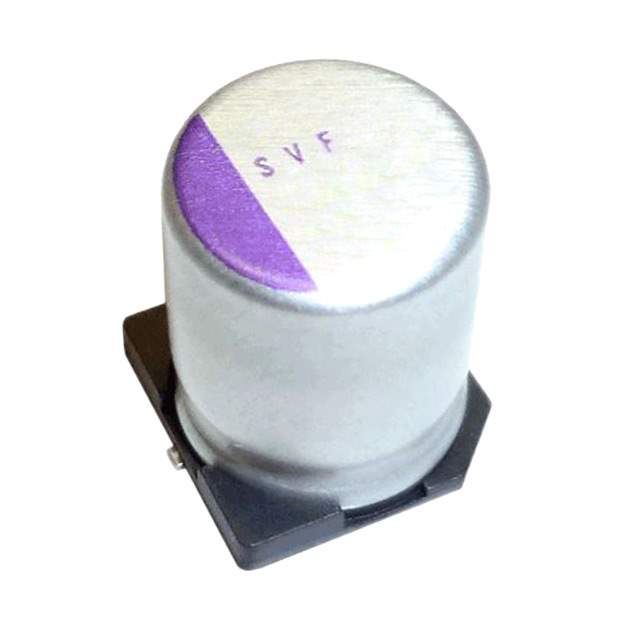

Same model may have multiple batches, images only for reference.

50SVF68M

Name: 50SVF68M
Brand: Panasonic
SKU: 1331543
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	50SVF68M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 68UF 20% 50V SMD / 68 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Type	Polymer
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	20mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Ripple Current @ Low Frequency	67.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.35 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	50SVF
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P122122CT,P122122TR,P122122DKR
Standard Package	400
Win Source Part Number	1331543-50SVF68M
Ultra Librarian 3D Model	Ultra Librarian 50SVF68M CAD Model

Description

This Panasonic Electronic Components capacitor is a high-quality aluminum-polymer capacitor with a capacitance of 68 µF and a voltage rating of 50 V.

Capacitance: 68 µF
Voltage Rating: 50 V
ESR: 20mOhm
Application: General-purpose
Mounting: Surface-mounted
Package Style: Radial, can
Diameter: 0.394 inches (10.00mm)
Height: 0.500 inches (12.70mm)
Ripple Current: 67.5 mA @ 120 Hz and 1.35 A @ 100 kHz
Lifetime: 1000 hours @ 125°C
Temperature Range: -55°C to 125°C
Package Quantity: 400
ROHS3 Compliant: Yes
