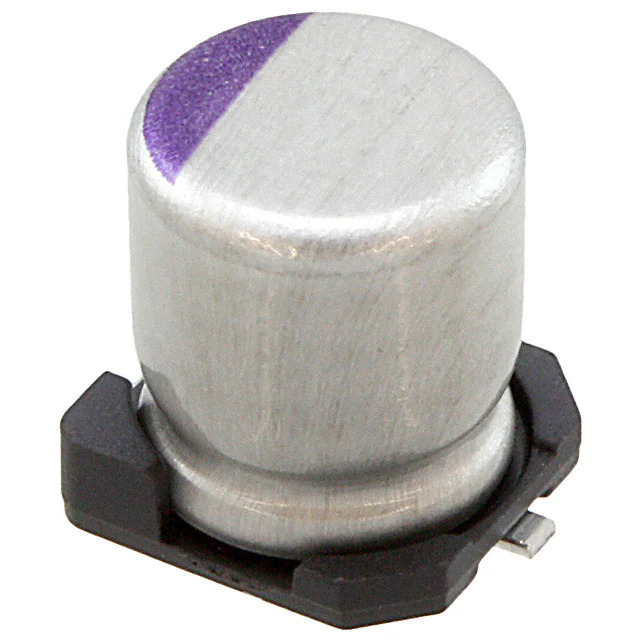

20SVPB22M Panasonic
Same model may have multiple batches, images only for reference.

20SVPB22M

Part No 20SVPB22M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 20V SMD / 22 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPB
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 100 mA @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 20SVPB
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359547-20SVPB22M
Ultra Librarian 3D Model Ultra Librarian 20SVPB22M CAD Model

Description

The 1359547-20SVPB22M is a polymer capacitor from the OS-CON™ SVPB series of Panasonic Electronic Components.

  • Capacitance: 22 µF
  • Voltage Rating: 20 V
  • Tolerance: ±20%
  • ESR: 35mOhm
  • Lifetime: 1000 hours @ 105°C
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Surface Mountable
  • Package: Radial, Can - SMD
  • Size: 0.248" diameter
  • Seated Height: 0.217"
  • REACH Status: Unaffected
