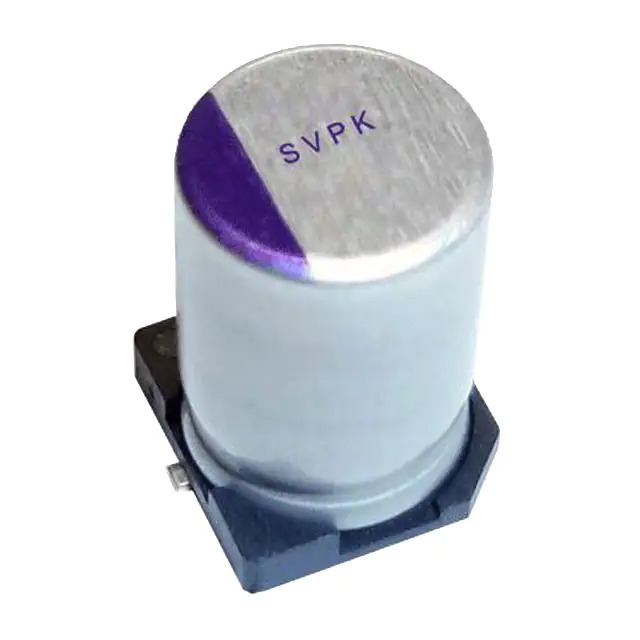

16SVPK330M Panasonic
Same model may have multiple batches, images only for reference.

16SVPK330M

Part No 16SVPK330M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 330UF 20% 16V SMD / 330 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPK
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 22mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 52 mA @ 120 Hz
Ripple Current @ High Frequency 1.04 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVPK
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359511-16SVPK330M
Ultra Librarian 3D Model Ultra Librarian 16SVPK330M CAD Model

Description

The 1359511-16SVPK330M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SVPK
  • Applications: General Purpose
  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage - Rated: 16 V
  • ESR (Equivalent Series Resistance): 22mOhm
  • Lifetime @ Temp.: 1000 Hrs @ 125°C
  • Ripple Current @ Low Frequency: 52 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.04 A @ 100 kHz
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.276" (7.00mm)
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
