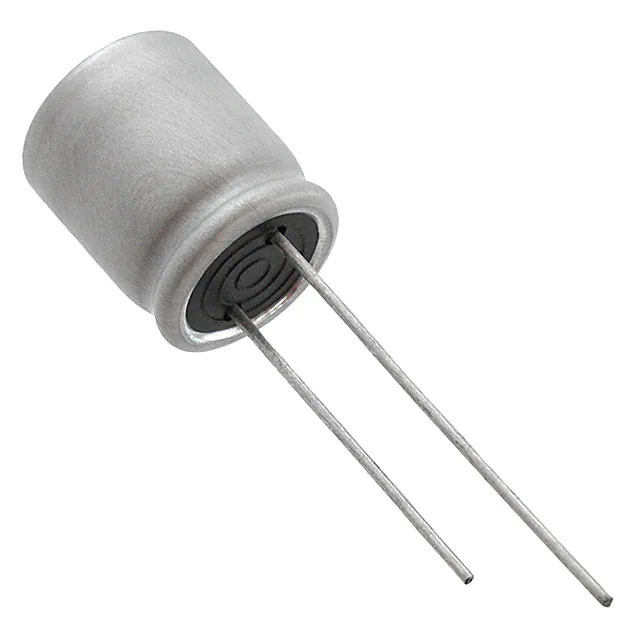

Same model may have multiple batches, images only for reference.

35SEPF120M+T

Name: 35SEPF120M+T
Brand: Panasonic
SKU: 1359534
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	35SEPF120M+T
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 120UF 20% 35V T/H / 120 µF 35 V Aluminum - Polymer Capacitors Radial, Can 18mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SEPF
Product Status	Active
Type	Polymer
Capacitance	120 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	18mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	220 mA @ 120 Hz
Ripple Current @ High Frequency	4.4 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	35SEPF
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359534-35SEPF120M+T
Ultra Librarian 3D Model	Ultra Librarian 35SEPF120M+T CAD Model

Description

The 1359534-35SEPF120M+T is a polymer capacitor from Panasonic Electronic Components.

Series: OS-CON™ SEPF
Application: General-Purpose
Capacitance: 120 µF
Tolerance: ±20%
Voltage Rating: 35 V
ESR: 18mOhm
Lifetime: 5000 hours @ 105°C
Ripple Current (Low Frequency): 220 mA @ 120 Hz
Ripple Current (High Frequency): 4.4 A @ 100 kHz
Diameter: 0.394" Dia (10.00mm)
Seated Height: 0.512" (13.00mm)
Mounting Type: Through-Hole
Package: Radial, Can
REACH: Unaffected
ECCN: EAR99
